Subaru Legacy BN/BS (2015-2019) Owners Manual: Replacing battery of access key

Subaru Legacy BN/BS (2015-2019) Owners Manual / Maintenance and service / Replacing battery / Replacing battery of access key

CAUTION When removing or fitting the access key cover, make sure that the plastic part does not come off or become misaligned.

Battery: Button battery CR2032

Replacing battery of access key

1) Release button
2) Mechanical key

Take out the mechanical key.

Replacing battery of access key

Wrap a flat-head screwdriver with vinyl tape or a cloth, and insert it in the gap to remove the cover.

Replacing battery of access key

Take out the battery using a flat-head screwdriver with vinyl tape or a cloth.

Replacing battery of access key

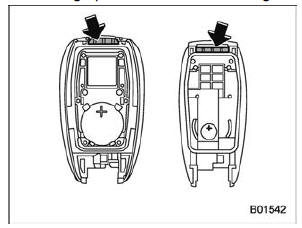

Insert a new battery with its positive (+) side facing upward as shown in the figure.

Replacing battery of access key

Attach the cover to the access key by fitting the projections and recesses together.
