Subaru Legacy Service Manual: Transfer clutch pressure test inspection

Subaru Legacy Service Manual / Continuously variable transmission(tr580) / Transfer clutch pressure test inspection

1. EXCEPT FOR OUTBACK MODEL

1. Lift up the vehicle.

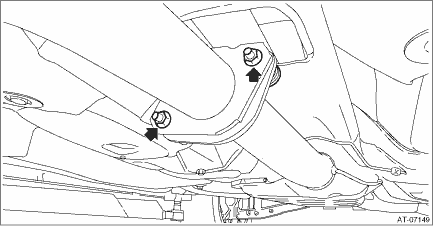

2. Remove the rear exhaust pipe from center exhaust pipe.

3. Remove the center exhaust cover.

4. Set the transmission jack under the transmission.

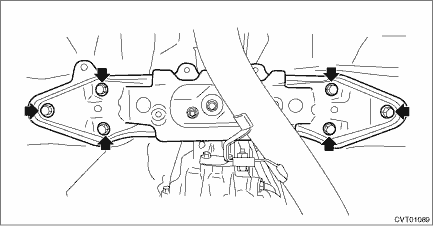

5. Remove the mounting bolt of rear crossmember.

6. Lower the rear side of transmission until the transfer clutch pressure test plug can be removed.

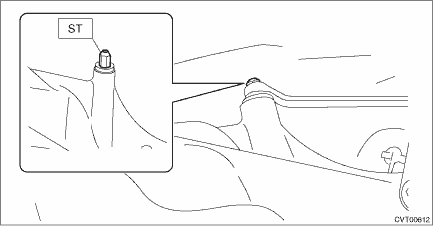

7. Using the ST, remove the transfer clutch pressure test plug.

ST 18270AA040SOCKET

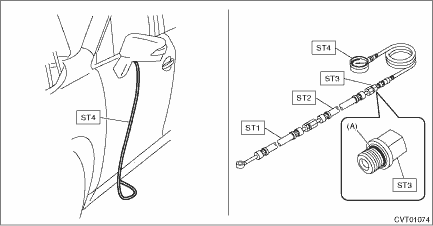

8. Set the ST1, ST2, ST3 and ST4 to the transmission.

NOTE:

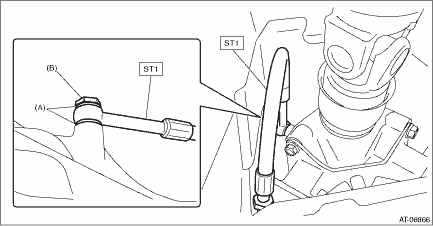

Use ST1 ADAPTER HOSE B with genuine union screw (Part No. 801914010) and gasket (Part No. 803914060) attached.

Use ST3 PRESSURE GAUGE ADAPTER with genuine O-ring (Part No. 806911080) attached.

ST1 34099AC020ADAPTER HOSE B
ST2 34099AC010ADAPTER HOSE A
ST3 18681AA000PRESSURE GAUGE ADAPTER
ST4 498575400OIL PRESSURE GAUGE ASSY

(A)

Gasket (genuine part)

(B)

Union screw (genuine part)

(A)

O-ring (genuine part)

9. Raise the transmission, and install the rear crossmember.

Tightening torque:

75 N·m (7.6 kgf-m, 55.3 ft-lb)

10. Install the rear exhaust pipe to center exhaust pipe.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

11. Lower the vehicle.

12. Connect the Subaru Select Monitor to the data link connector and read the current data.

13. Check the transfer clutch pressure as in secondary pressure (line pressure) test. Secondary Pressure (Line Pressure) Test

NOTE:

Use Subaru Select Monitor for switching to FWD mode. AWD ON/OFF Switching Mode

If no oil pressure is produced, if it does not change in AWD mode or if oil pressure is produced in FWD mode, there may be a problem in the control valve body.

Range position

ON

Duty ratio

(%)

Accelerator pedal opening angle

(%)

Standard transfer clutch pressure

kPa (kgf/cm2, psi)

AWD mode

FWD mode

D

95 — 100

Fully opened (100)

1,000 — 1,200

(10.2 — 12.2,

145 — 174)

60

Adjust ON Duty ratio to 60%.

400 — 700

(4.1 — 7.1,

58 — 102)

0

Fully closed (0)

0 (0, 0)

N or P

0

Fully closed (0)

0

14. Lift up the vehicle.

15. Remove the rear exhaust pipe from center exhaust pipe.

16. Set the transmission jack under the transmission.

17. Remove the mounting bolt of rear crossmember.

18. Lower the rear side of transmission until the ST can be removed.

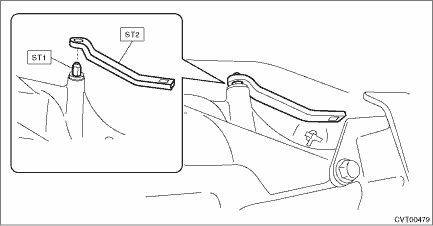

19. Install the test plug using ST1 and ST2.

NOTE:

Use new O-rings.

Apply CVTF to the O-rings.

Tighten the test plug while directly aligning ST2 and torque wrench.

ST1 18270AA040SOCKET
ST2 73099SG000SPECIAL TOOL CONDENSER

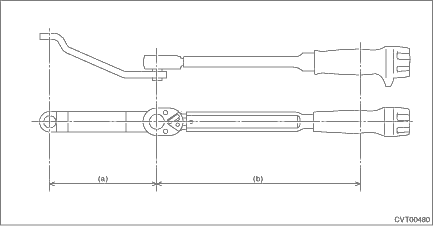

Using the following formula, calculate the tightening torque for a torque wrench.

T2 = L2/(L1 + L2) - T1

T1: 22 N·m (2.2 kgf-m, 16.2 ft-lb)

L1: ST2 length 0.1 m (3.94 in) (a)

L2: Torque wrench length (b) m (in)

[Required torque setting]

T2: Tightening torque: N·m (kgf-m, ft-lb)

20. Raise the transmission, and install the rear crossmember.

Tightening torque:

75 N·m (7.6 kgf-m, 55.3 ft-lb)

21. Install the center exhaust cover.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

22. Install the rear exhaust pipe to center exhaust pipe.

NOTE:

Use a new gasket.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

23. Lower the vehicle.

2. OUTBACK MODEL

1. Lift up the vehicle.

2. Remove the center exhaust cover.

3. Using the ST, remove the transfer clutch pressure test plug.

ST 18270AA040SOCKET

4. Set the ST1, ST2, ST3 and ST4 to the transmission.

NOTE:

Use ST1 ADAPTER HOSE B with genuine union screw (Part No. 801914010) and gasket (Part No. 803914060) attached.

Use ST3 PRESSURE GAUGE ADAPTER with genuine O-ring (Part No. 806911080) attached.

ST1 34099AC020ADAPTER HOSE B
ST2 34099AC010ADAPTER HOSE A
ST3 18681AA000PRESSURE GAUGE ADAPTER
ST4 498575400OIL PRESSURE GAUGE ASSY

(A)

Gasket (genuine part)

(B)

Union screw (genuine part)

(A)

O-ring (genuine part)

5. Connect the Subaru Select Monitor to the data link connector and read the current data.

6. Check the transfer clutch pressure as in secondary pressure (line pressure) test. Secondary Pressure (Line Pressure) Test

NOTE:

Use Subaru Select Monitor for switching to FWD mode. AWD ON/OFF Switching Mode

If no oil pressure is produced, if it does not change in AWD mode or if oil pressure is produced in FWD mode, there may be a problem in the control valve body.

Range position

ON

Duty ratio

(%)

Accelerator pedal opening angle

(%)

Standard transfer clutch pressure

kPa (kgf/cm2, psi)

AWD mode

FWD mode

D

95 — 100

Fully opened (100)

1,000 — 1,200

(10.2 — 12.2,

145 — 174)

60

Adjust ON Duty ratio to 60%.

400 — 700

(4.1 — 7.1,

58 — 102)

0

Fully closed (0)

0 (0, 0)

N or P

0

Fully closed (0)

0

7. Lift up the vehicle.

8. Remove the ST.

9. Install the test plug using ST1 and ST2.

NOTE:

Use new O-rings.

Apply CVTF to the O-rings.

Tighten the test plug while directly aligning ST2 and torque wrench.

ST1 18270AA040SOCKET
ST2 73099SG000SPECIAL TOOL CONDENSER

Using the following formula, calculate the tightening torque for a torque wrench.

T2 = L2/(L1 + L2) - T1

T1: 22 N·m (2.2 kgf-m, 16.2 ft-lb)

L1: ST2 length 0.1 m (3.94 in) (a)

L2: Torque wrench length (b) m (in)

[Required torque setting]

T2: Tightening torque: N·m (kgf-m, ft-lb)

10. Install the center exhaust cover.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

11. Lower the vehicle.
