Subaru Legacy Owners Manual: Trunk lid (Legacy) - if the trunk lid cannot be opened

Subaru Legacy Owners Manual / In case of emergency / Trunk lid (Legacy) - if the trunk lid cannot be opened

NOTE If you open the trunk lid with a key while the alarm system is armed, the alarm system is triggered and the vehicle's horn sounds. In this case, perform any of the following operations.

  •  Press any button on the remote transmitter.
  •  Insert the key into the ignition switch and turn the ignition switch to the "ON" position.

For details about the alarm system, refer to "Alarm system" .

The trunk lid can also be opened using the key.

Trunk lid (Legacy) - if the trunk lid cannot be opened

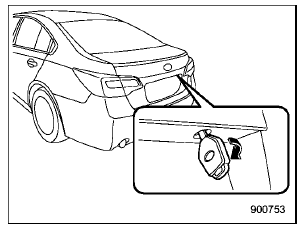

To open the trunk lid, insert the key into the key cylinder and turn it clockwise.

NOTE For models with "keyless access with push-button start system": The mechanical key is directional. If the key cannot be inserted, change the direction that the grooved side is facing and insert it again.
