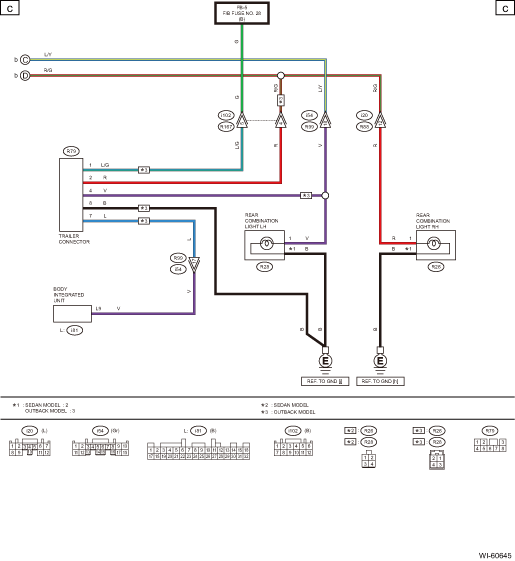

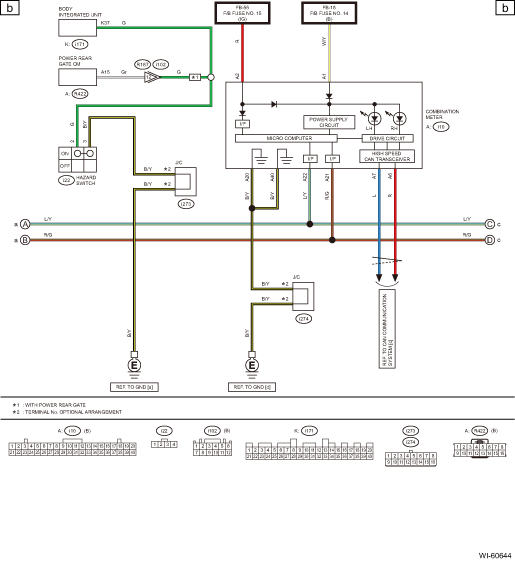

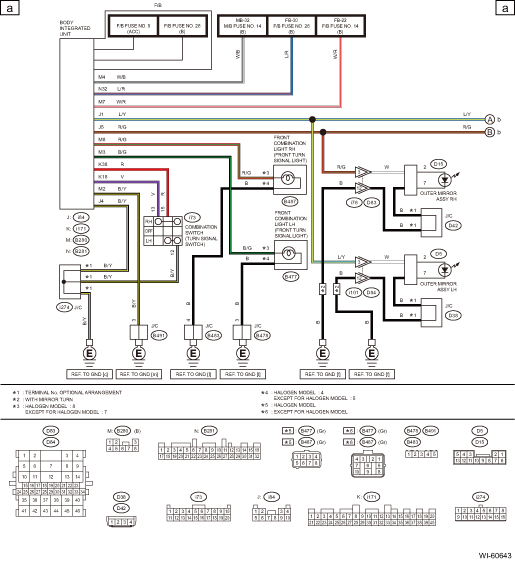

Subaru Legacy BN/BS (2015-2019) Service Manual: Turn signal light and hazard light system wiring diagram
