Subaru Legacy Service Manual: Adjustment

NOTE:

Immediately after removing the overflow drain plug, remaining gear oil (approx. 8 cc) may come out of the overflow pipe. This is not included in the specified amount. When removing the overflow drain plug, make sure the gear oil flows out of the overflow drain plug hole by filling with gear oil.

1. Lift up the vehicle.

2. Remove the front under cover. Front Under Cover > REMOVAL

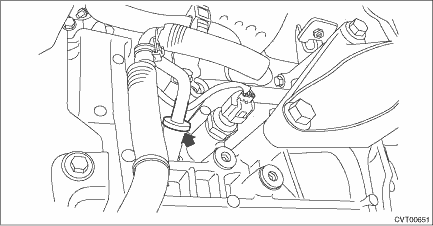

3. Remove the oil charge pipe cap.

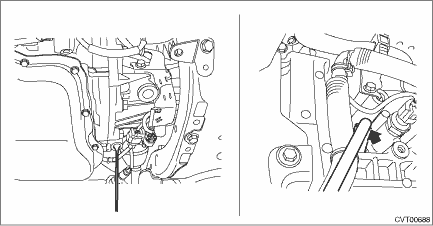

4. Remove the overflow drain plug.

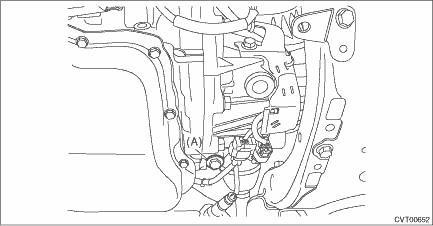

(A)

Overflow drain plug

5. Fill in the differential gear oil through the charge pipe up to where the oil flows out of the overflow drain plug.

Recommended gear oil:

General Description > SPECIFICATION

6. When the flow of the differential gear oil turns into a narrow stream, install the overflow drain plug.

NOTE:

Use a new gasket.

Tightening torque:

35 N·m (3.6 kgf-m, 25.8 ft-lb)

7. Install the oil charge pipe cap.

Replacement
CAUTION:• Immediately after the vehicle has been running or after idling for a long time, the differential gear oil will be hot. Be careful not to burn yourself.• Be careful not to spill d ...

Inspection
Check that there is no leakage of differential gear oil from the converter case. ...
