Subaru Legacy Service Manual: Component

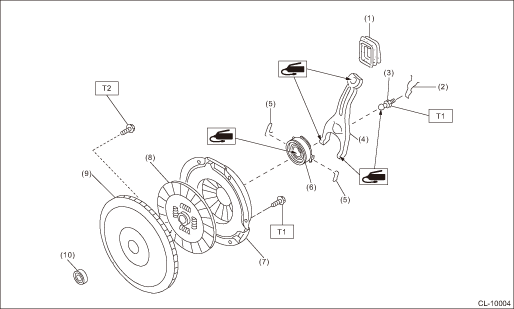

1. CLUTCH ASSEMBLY

(1)

Dust cover

(6)

Release bearing

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Lever spring

(7)

Clutch cover

T1:

16 (1.6, 11.8)

(3)

Pivot

(8)

Clutch disc

T2:

Flywheel > INSTALLATION

(4)

Release lever

(9)

Flexible flywheel

(5)

Clip

(10)

Pilot bearing

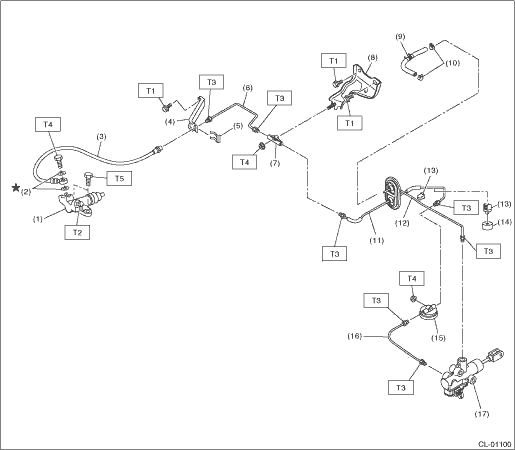

2. CLUTCH PIPE AND HOSE

(1)

Operating cylinder

(9)

Tank hose

(17)

Master cylinder ASSY

(2)

Gasket

(10)

Clamp

(3)

Clutch hose

(11)

Clutch pipe

Tightening torque: N·m (kgf-m, ft-lb)

(4)

Clutch hose bracket

(12)

Clutch pipe

T1:

7.5 (0.8, 5.5)

(5)

Clamp

(13)

Clamp

T2:

7.8 (0.8, 5.8)

(6)

Clutch pipe

(14)

Mass damper

T3:

15 (1.5, 11.1)

(7)

Connector

(15)

Clutch damper

T4:

18 (1.8, 13.3)

(8)

Clutch bracket

(16)

Clutch pipe

T5:

37 (3.8, 27.3)

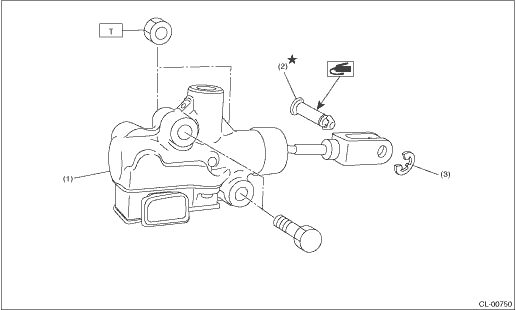

3. MASTER CYLINDER

(1)

Master cylinder ASSY

(3)

Clip

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Clevis pin

T:

18 (1.8, 13.3)

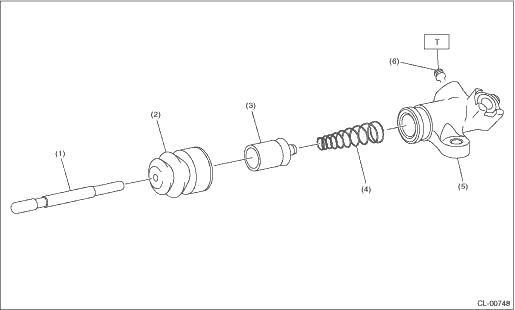

4. OPERATING CYLINDER

(1)

Push rod

(4)

Piston spring

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Boot

(5)

Operating cylinder

T:

7.8 (0.8, 5.8)

(3)

Piston

(6)

Bleeder screw

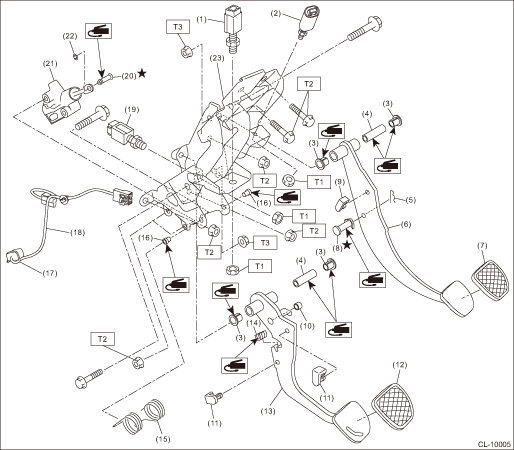

5. CLUTCH PEDAL ASSEMBLY

(1)

Clutch switch

(11)

Clutch pedal stopper

(21)

Master cylinder ASSY

(2)

Stop light switch

(12)

Clutch pedal pad

(22)

Clip

(3)

Bushing

(13)

Clutch pedal

(23)

Pedal bracket

(4)

Spacer

(14)

Torsion spring bushing

(5)

Snap pin

(15)

Torsion spring

Tightening torque: N·m (kgf-m, ft-lb)

(6)

Brake pedal

(16)

Assist bushing

T1:

8 (0.8, 5.9)

(7)

Brake pedal pad

(17)

Band

T2:

18 (1.8, 13.3)

(8)

Clevis pin

(18)

Sensor harness

T3:

30 (3.1, 22.1)

(9)

Brake pedal stopper

(19)

Clutch start switch

(10)

Bushing A

(20)

Clevis pin

Preparation tool
1. SPECIAL TOOLILLUSTRATIONTOOL NUMBERDESCRIPTIONREMARKS498497100CRANKSHAFT STOPPERUsed for stopping rotation of the flywheel.499747100CLUTCH DISC GUIDEUsed for installing the clutch disc to the flywh ...
