Subaru Legacy Service Manual: Dtc b1834 short in curtain airbag rh squib circuit

Subaru Legacy Service Manual / Airbag system (diagnostics) / Diagnostic chart with trouble code / Dtc b1834 short in curtain airbag rh squib circuit

DIAGNOSIS START CONDITION:

Ignition voltage is 10 V to 16 V.

DTC DETECTING CONDITION:

Short circuit between curtain airbag RH circuit and other circuit

CAUTION:

Before performing diagnosis, refer to “CAUTION” in “General Description”. General Description > CAUTION

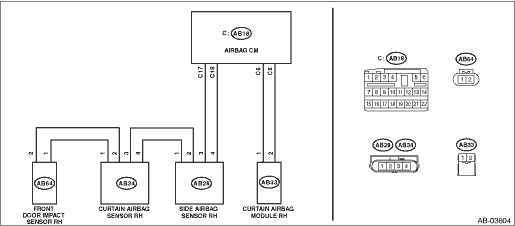

WIRING DIAGRAM:

NOTE:

For the coupling connector, refer to “WIRING SYSTEM”.

Airbag system Airbag System > WIRING DIAGRAM

STEPCHECKYESNO

1.CHECK POOR CONTACT OF CONNECTORS.

Check for poor contact of the connectors between the airbag control module, curtain airbag module RH and the curtain airbag sensor RH.

Is there poor contact-

Replace the airbag rear harness along with body harness.

Diagnostic Chart with Trouble Code > DTC B1834 SHORT IN CURTAIN AIRBAG RH SQUIB CIRCUIT

2.CHECK CURTAIN AIRBAG MODULE.

1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.

2) Disconnect the connector (AB33), and connect the connector (1N) in test harness N to connector (AB33).

3) Connect the airbag resistor to the connector (2N) of test harness N.

4) Connect the battery ground terminal and turn the ignition switch to ON.

Does the airbag warning light illuminate for six seconds and go off-

Replace the curtain airbag module RH. Curtain Airbag Module

Diagnostic Chart with Trouble Code > DTC B1834 SHORT IN CURTAIN AIRBAG RH SQUIB CIRCUIT

3.CHECK AIRBAG REAR HARNESS (CURTAIN AIRBAG MODULE HARNESS RH) (SHORTED BETWEEN LINES).

1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.

2) Disconnect the connector (AB26) from seat belt pretensioner RH.

3) Disconnect the connector (AB22) from seat cushion airbag module RH.

4) Disconnect the connector (AB24) from side airbag module RH.

5) Disconnect the airbag resistor from test harness N.

6) Disconnect the connectors (AB6, AB17, AB18) from airbag control module.

7) Connect the connector (1AD) in test harness AD AV to the connectors (AB6, AB17, AB18).

8) Connect the connector (2AD) in test harness AD AV and the connector (1AG) in test harness AG.

9) Measure the resistance between connector (6AG) in the test harness AG and all connector terminals in the test harness AG.

Connector & terminal

(6AG) No. 1 — All terminals in test harness AG:

(6AG) No. 3 — All terminals in test harness AG:

Is the resistance 1 M- or more-

Diagnostic Chart with Trouble Code > DTC B1834 SHORT IN CURTAIN AIRBAG RH SQUIB CIRCUIT

Replace the airbag rear harness along with body harness.

4.CHECK AIRBAG CONTROL MODULE.

1) Connect all connectors.

2) Clear the memory. Clear Memory Mode

3) Perform the Inspection Mode. Inspection Mode

4) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)

Is DTC B1834 displayed-

Replace the airbag control module. Airbag Control Module

Diagnostic Chart with Trouble Code > DTC B1834 SHORT IN CURTAIN AIRBAG RH SQUIB CIRCUIT

5.CHECK FOR ANY OTHER DTC ON DISPLAY.

Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)

Is any other DTC displayed-

Check DTC using “List of Diagnostic Trouble Code (DTC)”. List of Diagnostic Trouble Code (DTC)

Finish the diagnosis.
