Subaru Legacy Service Manual: Dtc p060a internal control module monitoring processor performance

Subaru Legacy Service Manual / Engine (diagnostics)(h6do) / Diagnostic procedure with diagnostic trouble code (dtc) / Dtc p060a internal control module monitoring processor performance

NOTE:

For the diagnostic procedure, refer to DTC P0606. Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0606 CONTROL MODULE PROCESSOR

1. OUTLINE OF DIAGNOSIS

Judge as NG when the monitoring IC operation is abnormal.

(1) Monitoring IC Disable (motor continuity cut demand) diagnosis

(2) Monitoring IC function diagnosis

(3) Monitoring IC register diagnosis

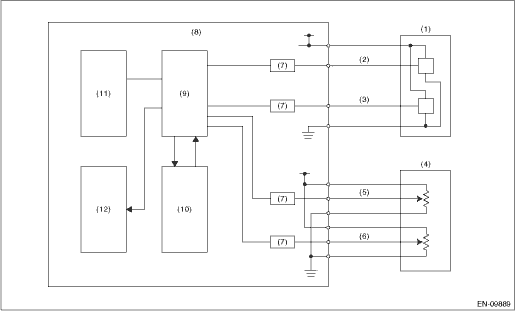

2. COMPONENT DESCRIPTION

(1)

Throttle position sensor

(5)

Accelerator pedal position sensor 1

(9)

CPU

(2)

Throttle position sensor 1

(6)

Accelerator pedal position sensor 2

(10)

Monitoring IC

(3)

Throttle position sensor 2

(7)

I/F circuit

(11)

EEPROM

(4)

Accelerator pedal position sensor

(8)

Engine control module (ECM)

(12)

Output IC

3. EXECUTION CONDITION

Secondary Parameters

Execution condition

(1) Battery voltage

≥ 6 V

(1) When CPU intentionally sends motor continuity cut demand

(2) Battery voltage

≥ 6 V

(2) CPU intentionally sends incorrect data

(3) Battery voltage

≥ 6 V

4. GENERAL DRIVING CYCLE

Always perform the diagnosis continuously.

5. DIAGNOSTIC METHOD

Judge as NG when one of the following conditions is established.

Judgment Value

Malfunction Criteria

Threshold Value

(1) Main throttle opening angle − Main throttle opening angle at monitoring start

≥ 2 °

(2) Monitoring IC motor continuity cut demand

None

(3) Monitoring IC register writing value

≠ Reading value

Time Needed for Diagnosis:

(1): 24 ms

(2): 2984 ms = (25 + 6) - 0.008 + (4 - 25 + 4) - 0.008 + (5 - 25 + 9) - 0.008 + (2 - 25 ) - 0.008 + (25 + 2) - 0.008 - 2

(3): 200 ms

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
