Subaru Legacy Service Manual: Electrical component location location

Subaru Legacy Service Manual / Cruise control system (diagnostics) / Electrical component location location

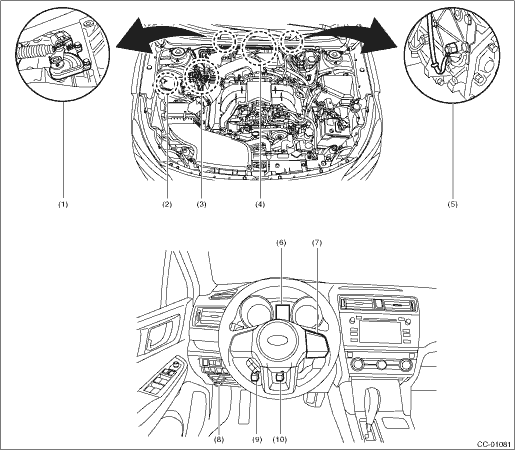

(1)

Inhibitor switch (CVT model)

(5)

Neutral position switch (MT model)

(8)

Data link connector

(2)

TCM (engine type: EZ)

(6)

Cruise indicator light and cruise set indicator light

(9)

Clutch switch (MT model)

(3)

ECM

(7)

Cruise control command switch

(10)

Stop light and brake switch

(4)

TCM (engine type: FB)

(on the transmission)
