Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h6do) / Oil flow control solenoid valve / Inspection

1. Check that the oil flow control solenoid valve has no deformation, cracks or other damages.

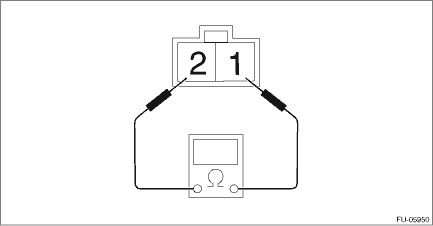

2. Measure the resistance between the oil control solenoid terminals.

Terminal No.	Standard
1 and 2	7.4±0.5 - (when 20°C (68°F))
