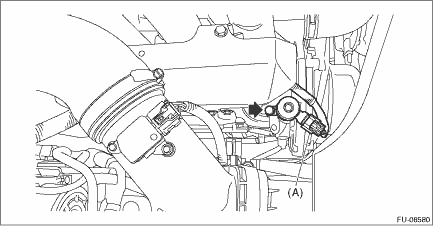

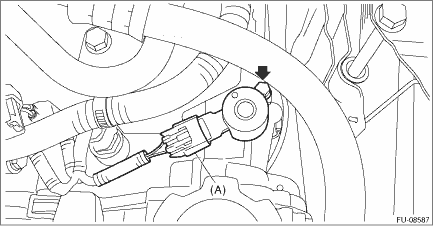

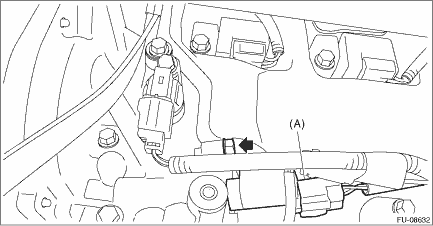

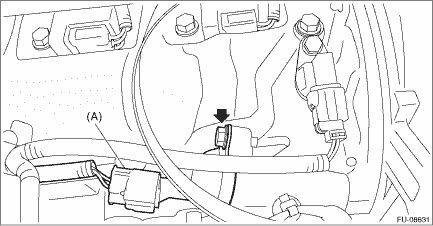

1. INTAKE SIDE 1. Remove the collector cover. (1) Carefully pull up the rear of collector cover at two positions (A). (2) Carefully pull up the front of collector cover at two positions (B) while moving it forward. 2. Disconnect the ground terminal from battery sensor. NOTE 3. Disconnect the connector (A) from the intake oil flow control solenoid valve, and remove the intake oil flow control solenoid valve. • RH side • LH side 2. EXHAUST SIDE 1. Disconnect the ground terminal from battery sensor. NOTE 2. Lift up the vehicle. 3. Remove the under cover. Front Under Cover > REMOVAL 4. Disconnect the connector (A) from the exhaust oil flow control solenoid valve, and remove the exhaust oil flow control solenoid valve. • RH side • LH side |
