Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

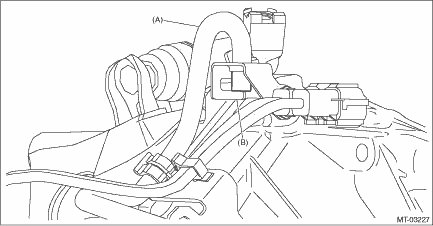

1. Install the air breather hose. NOTE: • When installing the air breather hose, pay attention to the positions of the two markings on the hose and make sure the markings come to the same position as when removed. • Securely insert the air breather hose until the hose end contacts the catch of the pitching stopper bracket.
2. Install the air intake boot. Air Intake Boot > INSTALLATION 3. Connect the ground terminal to battery sensor. NOTE |
Inspection
Check the hose for peeling, crack or clogging. ...
