Subaru Legacy Owners Manual: Installing forward facing child restraint

WARNING Before installing a child restraint system, be sure to confirm that the seatback is securely locked into place. Otherwise, in an accident, serious injury or death could result.
  1. Shake the seatback slightly to confirm that it is securely locked into place.
  2.  If the child restraint system makes contact with the head restraint of the rear seating position where the child restraint system is to be installed, raise the head restraint to the extended position. If the child restraint system still makes contact, remove the head restraint. For details, refer to "Head restraint adjustment"  14.
CAUTION Store the head restraint that has been removed in the trunk or cargo area. Avoid placing the head restraint in the passenger compartment to prevent it from being thrown around in the passenger compartment in a sudden stop or a sharp turn.
  1. For the Outback, adjust the seatback to the upright position.
  2.  Place the child restraint system in the rear seating position
WARNING When you intend to install a child restraint system on the rear center seating position, if the child restraint system does not fit snugly against the contours of the rear center seat cushion, install the child restraint system on the window-side seating position to be safe. For details, refer to "Where to place a child restraint system" .

Installing forward facing child restraint

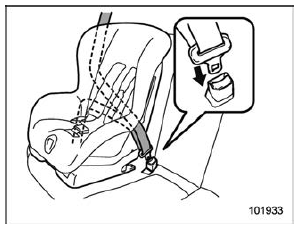

  1. Run the lap and shoulder belt through or around the child restraint system following the instructions provided by its manufacturer.
  2.  Insert the tongue plate into the buckle until you hear a click.

Installing forward facing child restraint

  1. Take up the slack in the lap belt.
  2.  Pull out the seatbelt fully from the retractor to change the retractor over from the Emergency Locking Retractor (ELR) to the Automatic Locking Retractor (ALR) function. Then, allow the belt to rewind into the retractor. As the belt is rewinding, clicks will be heard which indicate the retractor functions as ALR.

Installing forward facing child restraint

  1. Before seating a child in the child restraint system, try to move it back and forth and left and right to verify that it is firmly secured in the center of the seat.

    Sometimes a child restraint can be more firmly secured by pushing it down into the seat cushion and then tightening the seatbelt.

    10. Pull at the shoulder portion of the belt to confirm that it cannot be pulled out (ALR properly functioning).

Legacy

Legacy

Outback

Outback

  1. If the child restraint system requires a top tether, latch the hook onto the top tether anchor and tighten the top tether.

    For additional instructions, refer to "Top tether anchorages" .

Outback

  1. To remove the child restraint system, press the release button on the seatbelt buckle and allow the belt to retract completely. The belt will return to the ELR mode.

NOTE When the child restraint system is no longer in use, remove it and restore the ELR function of the retractor. That function is restored by allowing the seatbelt to retract fully.
