Subaru Legacy Service Manual: Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Remove the air breather hose. Air Breather Hose > REMOVAL

3. Remove the oil pan and control valve body. Control Valve Body > REMOVAL

4. Remove the transmission harness. Transmission Harness > REMOVAL

5. Remove the extension case. Extension Case > REMOVAL

6. Remove the rear drive shaft. Rear Drive Shaft > REMOVAL

7. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

8. Remove the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > REMOVAL

9. Remove the intermediate case. Intermediate Case > REMOVAL

10. Remove the forward clutch assembly. Forward Clutch Assembly > REMOVAL

11. Remove the transmission case. Transmission Case > REMOVAL

12. Remove the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > REMOVAL

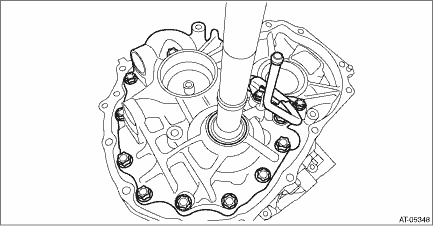

13. Using the ST, remove the drive pinion retainer and lubrication pipe.

ST 18270KA020SOCKET (E20)

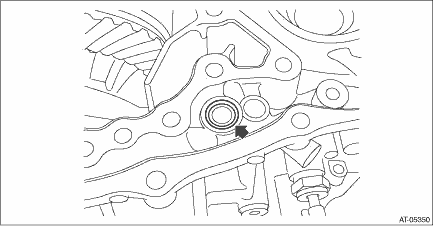

14. Remove the O-rings.

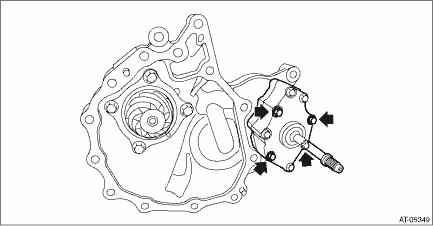

15. Remove the oil pump and the plate.

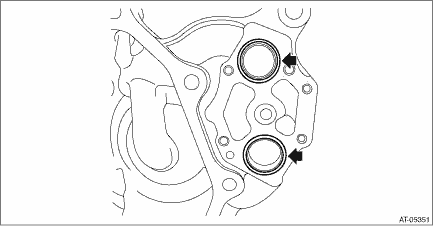

16. Remove the O-rings.

Drive pinion shaft assembly
...

Adjustment
1. Remove the liquid gasket from the mating surface completely.2. Using the ST, install the drive pinion retainer to converter case.ST 18270KA020SOCKET (E20)NOTE:Do not confuse the three different- ...
