Subaru Legacy Owners Manual: Voice command system operation

Subaru Legacy Owners Manual / Audio / Voice command system / Voice command system operation

  1. Press the talk switch on the steering wheel.

After the voice command top screen has been displayed, speech guidance will commence.

Voice command system operation

NOTE When the voice command mode is audio mode, voice guidance for the voice command system can be skipped by pressing the talk switch on the steering wheel.

  1. Say the command.

Example (Say
Example (Say "PHONE")

NOTE

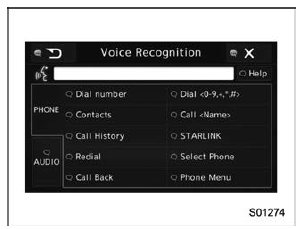

  •  Commands related with each function are displayed on the screen of the each function tab. Some commonly used commands are displayed on the screen of the main tab. Even if any tab is selected, all commands can be operated.
  •  Saying "Help" prompts guidance to offer examples of commands and operation methods.
  •  To cancel voice recognition, select "6", or press and hold the talk switch on the steering wheel.
  •  If the system does not respond or the confirmation screen does not disappear, press the talk switch on the steering wheel and try again.
  •  The notations used in the commands are as follows.
  •  < >: Numbers, titles or names to be spoken

Voice command example: Call name

  1.  Press the talk switch on the steering wheel.
  2.  Say "Call <contacts>".
  •  A confirmation screen will be displayed showing the recognition results.

    If multiple matching items are found, a selection screen will be displayed. Say "<number>" or select the number.

NOTE

  •  In the same manner as it is displayed on the screen, "Call <contacts>", after saying "Call a contact" say the name of a contact. For example: "Call a contact", "John Smith" or "Call a contact", "Mary Davis"
  •  Short or abbreviated names in the contacts list may not be recognized.

    Change names in the contacts list to full names.

  •  Sometimes a voice recognition result confirmation screen will be displayed.

    After confirming the result, say "Yes" or "No".

  •  When the system recognizes multiple names from the contacts list, a name candidate list will be displayed on the screen. If the desired name is not displayed on the top of the screen, say or select the number of the name from the candidate list (number 1, number 2, etc.) to select a name from the candidate list.
  •  When a contact has multiple phone numbers registered in the contacts list, a candidate list will be displayed. If the desired phone number is not displayed on the top of the screen, say or select the number of the desired phone number from the candidate list (number 1, number 2, etc.) to select a phone number from the candidate list.

Voice command example: Dial number

  1.  Press the talk switch on the steering wheel.
  2.  Say "Dial a number".
  3.  Say "Dial <number>".

    For example, if the phone number is 2345678: Say "two three four five six seven eight" Do not say "twenty three forty five sixty seven eight"

  4.  Say"Call" or press the off hook switch on the steering wheel.

NOTE

  •  When the system recognizes multiple phone numbers, a phone number candidate list will be displayed on the screen. Pressing the off hook switch on the steering wheel makes a call to the top entry on the list. If the desired phone number is not displayed on the top of the screen, say the number of the desired phone number from the candidate list to select a phone number from the candidate list.
  •  Calling to the following phone numbers
  •  3 digit numbers (911, 411, 611)
  •  7 digit numbers (Local phone numbers)
  •  10 digit numbers (Area code + Local phone number)
  •  11 digit phone numbers (1 + Area code + Local phone number)
  •  As the system cannot recognize additional numbers, say the complete number without stopping.

Casual speech recognization

Due to natural language speech recognition technology, this system enables recognition of a command when spoken naturally. However, the system cannot recognize every variation of each command.

In some situations, it is possible to omit the command for the procedure and directly state the desired operation. Not all voice commands are displayed in the function menu.

NOTE If the command cannot be recognized completely, the command input screen will be displayed. (Search results will be shown based on the part of the command that was recognized.)

Expression examples for each function

Command

Expression examples

"Dial <phone number>" Phone <phone number>.
