DIAGNOSIS START CONDITION:

Ignition voltage is 10 V to 16 V.

DTC DETECTING CONDITION:

Shorted between side sensor RH circuit and GND circuit

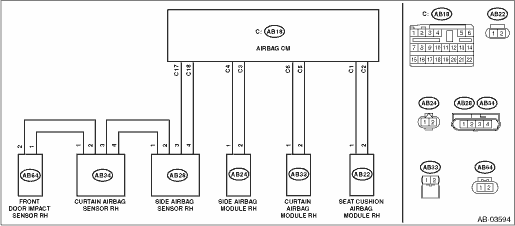

WIRING DIAGRAM:

NOTE:

For the coupling connector, refer to “WIRING SYSTEM”.

Airbag system Airbag System > WIRING DIAGRAM

STEPCHECKYESNO

1.CHECK POOR CONTACT OF CONNECTORS.

Check for poor contact of the connectors between the airbag control module and side airbag sensor RH, curtain airbag sensor RH, or front door impact sensor RH.

Is there poor contact-

Replace the airbag rear harness along with body harness.

Diagnostic Chart with Trouble Code > DTC B16B2 SHORT IN SIDE SATELLITE SENSOR BUS RH (TO GROUND)

2.CHECK AIRBAG REAR HARNESS (SIDE SENSOR BUS RH) (SHORTED TO GROUND).

1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.

2) Disconnect the connector (AB26) from seat belt pretensioner RH.

3) Disconnect the connector (AB22) from seat cushion airbag module RH.

4) Disconnect the connector (AB33) from curtain airbag module RH.

5) Disconnect the connector (AB24) from side airbag module RH.

6) Disconnect the connectors (AB6, AB17, AB18) from airbag control module.

7) Connect the connector (1AD) in test harness AD AV to the connectors (AB6, AB17, AB18).

8) Connect the connector (2AD) in test harness AD AV and the connector (1AG) in test harness AG.

9) Disconnect the connector (AB28) from side airbag sensor RH.

10) Disconnect the connector (AB34) from curtain airbag sensor RH.

11) Disconnect the connector (AB64) from front door impact sensor RH.

12) Measure the resistance between connector (5AG) in the test harness AG and chassis ground.

Connector & terminal

(5AG) No. 8 — Chassis ground:

(5AG) No. 10 — Chassis ground:

Is the resistance 1 M- or more-

Diagnostic Chart with Trouble Code > DTC B16B2 SHORT IN SIDE SATELLITE SENSOR BUS RH (TO GROUND)

Replace the airbag rear harness along with body harness.

3.CHECK AIRBAG CONTROL MODULE.

1) Connect all connectors.

2) Clear the memory. Clear Memory Mode

3) Perform the Inspection Mode. Inspection Mode

4) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)

Is DTC B16B2 displayed-

Diagnostic Chart with Trouble Code > DTC B16B2 SHORT IN SIDE SATELLITE SENSOR BUS RH (TO GROUND)

Diagnostic Chart with Trouble Code > DTC B16B2 SHORT IN SIDE SATELLITE SENSOR BUS RH (TO GROUND)

4.CHECK CURTAIN AIRBAG SENSOR RH.

1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.

2) Replace the curtain airbag sensor RH by the curtain airbag sensor LH. Curtain Airbag Sensor > REMOVAL

3) Connect all connectors.

4) Clear the memory. Clear Memory Mode

5) Perform the Inspection Mode. Inspection Mode

6) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)

Is DTC B16B2 displayed-

Diagnostic Chart with Trouble Code > DTC B16B2 SHORT IN SIDE SATELLITE SENSOR BUS RH (TO GROUND)

Replace the curtain airbag sensor RH. Curtain Airbag Sensor > REMOVAL

5.CHECK SIDE AIRBAG SENSOR RH.

1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.

2) Restore the curtain airbag sensors RH and LH back to their original position. Curtain Airbag Sensor > REMOVAL

3) Replace the side airbag sensor RH by the side airbag sensor LH. Side Airbag Sensor > REMOVAL

4) Connect all connectors.

5) Clear the memory. Clear Memory Mode

6) Perform the Inspection Mode. Inspection Mode

7) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)

Is DTC B16B2 displayed-

Diagnostic Chart with Trouble Code > DTC B16B2 SHORT IN SIDE SATELLITE SENSOR BUS RH (TO GROUND)

Replace the side airbag sensor RH. Side Airbag Sensor > REMOVAL

6.CHECK AIRBAG CONTROL MODULE.

1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.

2) Restore the side airbag sensors RH and LH back to their original position. Side Airbag Sensor > REMOVAL

3) Connect all connectors.

4) Clear the memory. Clear Memory Mode

5) Perform the Inspection Mode. Inspection Mode

6) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)

Is DTC B16B2 displayed-

Replace the airbag control module. Airbag Control Module > REMOVAL

Diagnostic Chart with Trouble Code > DTC B16B2 SHORT IN SIDE SATELLITE SENSOR BUS RH (TO GROUND)

7.CHECK FOR ANY OTHER DTC ON DISPLAY.

Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)

Is any other DTC displayed-

Check DTC using “List of Diagnostic Trouble Code”. List of Diagnostic Trouble Code (DTC) > LIST

Finish the diagnosis.
