Subaru Legacy Service Manual: Dtc b16b3 short in side satellite sensor bus rh (to +b)

Subaru Legacy Service Manual / Airbag system (diagnostics) / Diagnostic chart with trouble code / Dtc b16b3 short in side satellite sensor bus rh (to +b)

DIAGNOSIS START CONDITION:

Ignition voltage is 10 V to 16 V.

DTC DETECTING CONDITION:

Shorted between side sensor RH circuit and power supply circuit

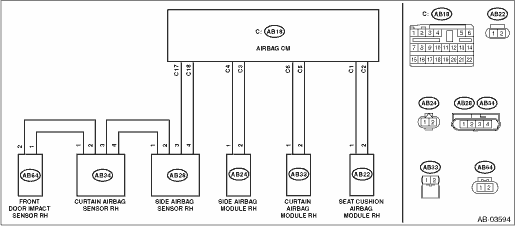

WIRING DIAGRAM:

NOTE:

For the coupling connector, refer to “WIRING SYSTEM”.

Airbag system Airbag System > WIRING DIAGRAM

STEPCHECKYESNO

1.CHECK POOR CONTACT OF CONNECTORS.

Check for poor contact of the connectors between the airbag control module and side airbag sensor RH, curtain airbag sensor RH, or front door impact sensor RH.

Is there poor contact-

Replace the airbag rear harness along with body harness.

Diagnostic Chart with Trouble Code > DTC B16B3 SHORT IN SIDE SATELLITE SENSOR BUS RH (TO +B)

2.CHECK AIRBAG REAR HARNESS (SIDE SENSOR BUS RH) (SHORTED TO POWER SUPPLY).

1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.

2) Disconnect the connector (AB26) from seat belt pretensioner RH.

3) Disconnect the connector (AB22) from seat cushion airbag module RH.

4) Disconnect the connector (AB33) from curtain airbag module RH.

5) Disconnect the connector (AB24) from side airbag module RH.

6) Disconnect the connectors (AB6, AB17, AB18) from airbag control module.

7) Connect the connector (1AD) in test harness AD AV to the connectors (AB6, AB17, AB18).

8) Connect the connector (2AD) in test harness AD AV and the connector (1AG) in test harness AG.

9) Disconnect the connector (AB28) from side airbag sensor RH.

10) Disconnect the connector (AB34) from curtain airbag sensor RH.

11) Disconnect the connector (AB64) from front door impact sensor RH.

12) Turn the ignition switch to ON.

13) Measure the voltage between connector (5AG) in the test harness AG and chassis ground.

Connector & terminal

(5AG) No. 8 (+) — Chassis ground (−):

(5AG) No. 10 (+) — Chassis ground (−):

Is the voltage less than 1 V-

Diagnostic Chart with Trouble Code > DTC B16B3 SHORT IN SIDE SATELLITE SENSOR BUS RH (TO +B)

Replace the airbag rear harness along with body harness.

3.CHECK AIRBAG CONTROL MODULE.

1) Connect all connectors.

2) Clear the memory. Clear Memory Mode

3) Perform the Inspection Mode. Inspection Mode

4) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)

Is DTC B16B3 displayed-

Replace the airbag control module. Airbag Control Module > REMOVAL

Diagnostic Chart with Trouble Code > DTC B16B3 SHORT IN SIDE SATELLITE SENSOR BUS RH (TO +B)

4.CHECK FOR ANY OTHER DTC ON DISPLAY.

Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)

Is any other DTC displayed-

Check DTC using “List of Diagnostic Trouble Code”. List of Diagnostic Trouble Code (DTC) > LIST

Finish the diagnosis.
