Subaru Legacy Service Manual: Installation

1. Clean the mating surface of drive pinion retainer and converter case.

2. Adjust the backlash and tooth contact between drive pinion shaft assembly and the front differential side gear. Drive Pinion Shaft Assembly > ADJUSTMENT

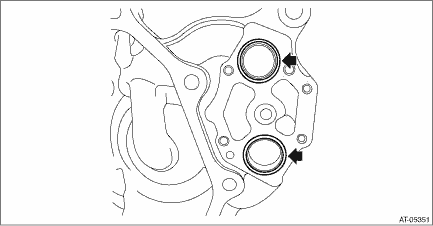

3. Install the O-ring for oil pump to drive pinion retainer.

NOTE:

Use new O-rings.

Apply CVTF to the O-rings.

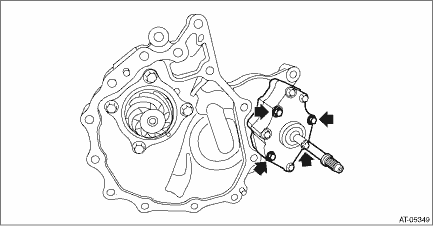

4. Install the plate and the oil pump.

NOTE:

Apply CVTF to the bolt.

Tightening torque:

8.5 N·m (0.9 kgf-m, 6.3 ft-lb)

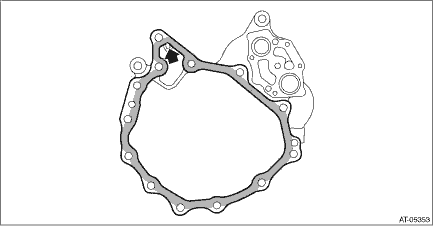

5. Apply liquid gasket seamlessly to the mating surface of drive pinion retainer.

NOTE:

Be careful not to block the arrowed hole when applying liquid gasket.

Liquid gasket:

THREE BOND 1215B or equivalent

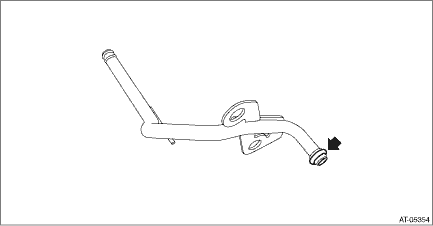

6. Install the O-ring to the lubrication pipe.

NOTE:

Use new O-rings.

Apply CVTF to the O-rings.

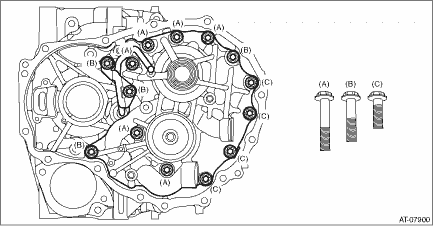

7. Install the drive pinion retainer and lubrication pipe to converter case and tighten the bolt using the ST.

ST 18270KA020SOCKET (E20)

NOTE:

Do not confuse the three different-length bolts when installing.

Tightening torque:

43 N·m (4.4 kgf-m, 31.7 ft-lb)

8. Install the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > INSTALLATION

9. Install the transmission case. Transmission Case > INSTALLATION

10. Install the forward clutch assembly. Forward Clutch Assembly > INSTALLATION

11. Install the intermediate case. Intermediate Case > INSTALLATION

12. Install the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > INSTALLATION

13. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION

14. Install the rear drive shaft. Rear Drive Shaft > INSTALLATION

15. Install the extension case. Extension Case > INSTALLATION

16. Install the transmission harness. Transmission Harness > INSTALLATION

17. Install the oil pan and control valve body. Control Valve Body > INSTALLATION

18. Install the air breather hose. Air Breather Hose > INSTALLATION

19. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION

Adjustment
1. Remove the liquid gasket from the mating surface completely.2. Using the ST, install the drive pinion retainer to converter case.ST 18270KA020SOCKET (E20)NOTE:Do not confuse the three different- ...

Inspection
• Make sure that all component parts are free of scratches, holes and other faults.• Check the tooth contact. Drive Pinion Shaft Assembly > ADJUSTMENT• Apply CVTF to bearing and rot ...
