Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Front reduction drive gear / Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Remove the air breather hose. Air Breather Hose > REMOVAL

3. Remove the oil pan and control valve body. Control Valve Body > REMOVAL

4. Remove the transmission harness. Transmission Harness > REMOVAL

5. Remove the primary speed sensor. Primary Speed Sensor > REMOVAL

6. Remove the extension case. Extension Case > REMOVAL

7. Remove the rear drive shaft. Rear Drive Shaft > REMOVAL

8. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

9. Remove the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > REMOVAL

10. Remove the intermediate case. Intermediate Case > REMOVAL

11. Remove the forward clutch assembly. Forward Clutch Assembly > REMOVAL

12. Remove the transmission case. Transmission Case > REMOVAL

13. Remove the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > REMOVAL

14. Remove the drive pinion shaft assembly. Drive Pinion Shaft Assembly > REMOVAL

15. Remove the converter case cover. Converter Case Cover > REMOVAL

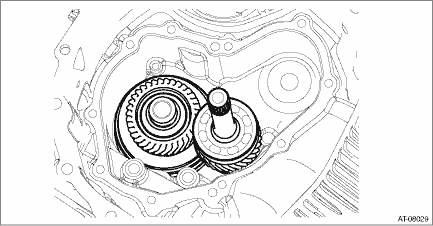

16. Remove the front reduction drive gear and front reduction driven gear together.

NOTE:

Remove the front reduction driven shaft while holding it.

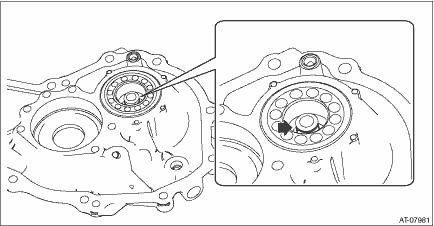

17. Remove the shims of the front reduction driven gear from the converter case.

18. Remove the seal rings.
