Subaru Legacy BN/BS (2015-2019) Service Manual / Mechanical(h6do) / Chain cover / Removal

NOTE:

When replacing a single part, perform the work with the engine assembly installed to body.

1. When working on the vehicle

NOTE:

When working on the vehicle, perform the following steps also.

(1) Remove the radiator. Radiator > REMOVAL

(2) Remove the front exhaust pipe. Front Exhaust Pipe > REMOVAL

(3) Remove the engine mounting. Engine Mounting > REMOVAL

2. Drain the engine oil. Engine Oil > REPLACEMENT

3. Remove the V-belts. V-belt > REMOVAL

4. Remove the crank pulley. Crank Pulley > REMOVAL

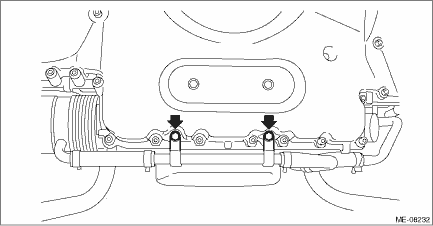

5. Remove the oil cooler pipe from the chain cover.

6. Remove the chain cover.

NOTE:

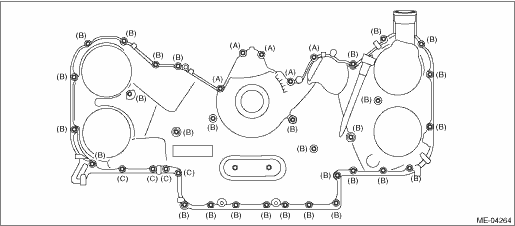

Chain cover installation bolt has three different sizes. To prevent the confusion in installation, keep these bolts on container individually.

(A)

M6 - 21

(B)

M6 - 30

(C)

M6 - 53

1. Check the chain cover surface for scratches or dents.2. Check for oil leakage on the chain cover mating surface and installation part of crank pulley.If there is an oil leak from the oil seal, perf ...
