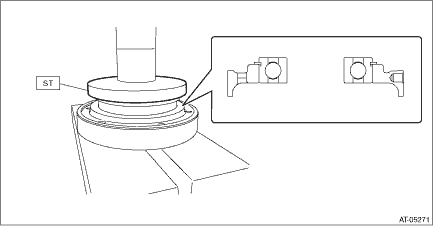

1. Using the ST, install the ball bearing to bearing retainer.

ST 398177700INSTALLER

NOTE:

• Use a new ball bearing.

• Make sure to install the ball bearing in the right direction.

• Apply CVTF to the press-fitting area.

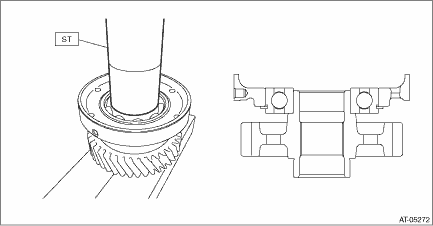

2. Using the ST, install the reduction driven gear.

ST 499277200INSTALLER

Disassembly
1. Remove the bearing retainer using ST1, ST2 and ST3.ST1 899864100REMOVERST2 398497701SEATST3 18767AA000BEARING REMOVER2. Remove the snap ring.3. Remove the ball bearing using ST1, ST2 and S ...
