Subaru Legacy BN/BS (2015-2019) Service Manual: Component

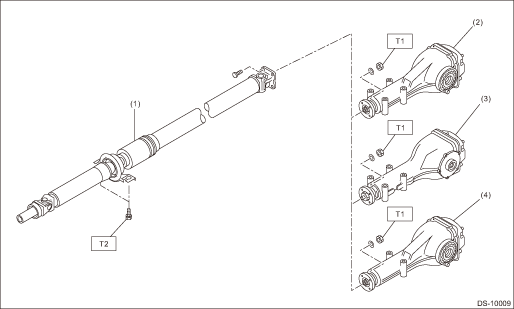

1. PROPELLER SHAFT

(1)

Propeller shaft

(3)

Rear differential (T-type)

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Rear differential (VA1-type)

(4)

Rear differential (VA2-type)

T1:

31 (3.2, 22.9)

T2:

52 (5.3, 38.4)

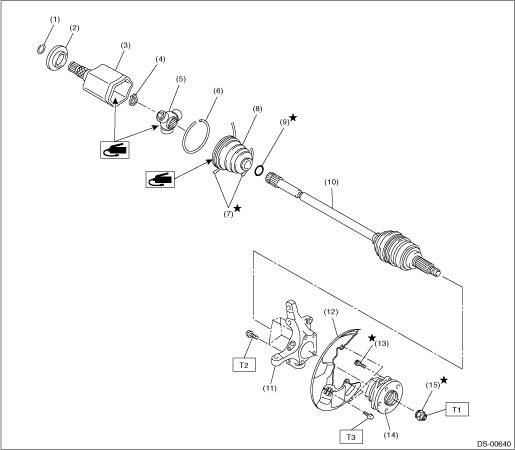

2. FRONT AXLE

(1)

Circlip

(8)

Boot (PTJ)

(15)

Axle nut

(2)

Baffle plate

(9)

O-ring

(3)

Outer race (PTJ)

(10)

EBJ shaft ASSY

Tightening torque: N·m (kgf-m, ft-lb)

(4)

Snap ring

(11)

Front axle housing

T1:

220 (22.4, 162.3)

(5)

Trunnion

(12)

Front brake back plate

T2:

65 (6.6, 47.9)

(6)

Snap ring

(13)

Hub bolt

T3:

18 (1.8, 13.3)

(7)

Boot band

(14)

Front hub unit bearing

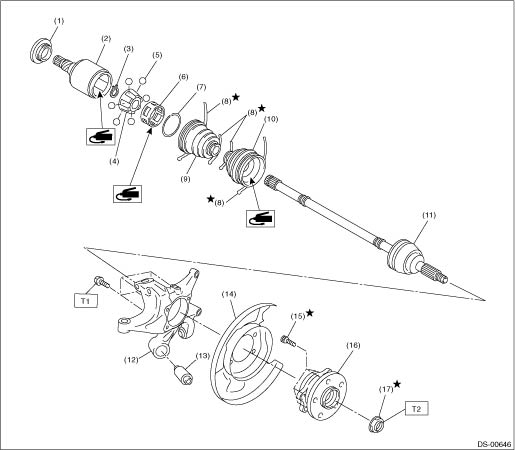

3. REAR AXLE

(1)

Baffle plate

(8)

Boot band

(15)

Hub bolt

(2)

Outer race (DOJ)

(9)

Boot (DOJ)

(16)

Rear hub unit bearing

(3)

Snap ring

(10)

Boot (BJ)

Boot (EBJ)

(17)

Axle nut

(4)

Inner race

(11)

BJ shaft ASSY

EBJ shaft ASSY

(5)

Ball

(12)

Axle housing

Tightening torque: N·m (kgf-m, ft-lb)

(6)

Cage

(13)

Rear bushing

T1:

65 (6.6, 47.9)

(7)

Snap ring

(14)

Rear brake back plate

T2:

240 (24.5, 177.0)
