Subaru Legacy BN/BS (2015-2019) Service Manual: Component

Subaru Legacy BN/BS (2015-2019) Service Manual / Parking brake / General description / Component

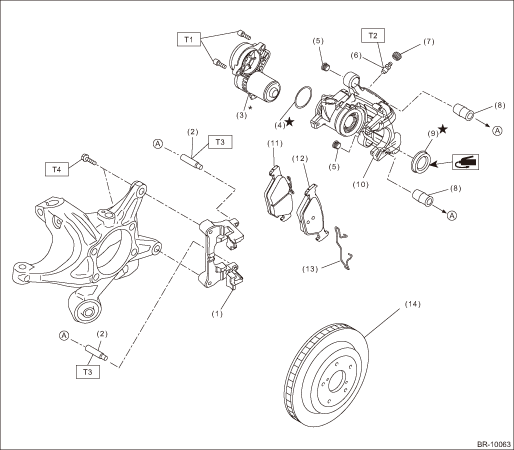

1. PARKING BRAKE ACTUATOR

(1)	Support - rear disc brake	(8)	Pin boot	Tightening torque: N·m (kgf-m, ft-lb)
(2)	Guide pin - rear brake	(9)	Piston boot	T1:	8 (0.8, 5.9)
(3)	Parking brake actuator ASSY	(10)	Caliper body	T2:	17 (1.7, 12.5)
(4)	O-ring	(11)	Pad - disc brake rear inner	T3:	25 (2.5, 18.4)
(5)	Cap	(12)	Pad - disc brake rear outer	T4:	66 (6.7, 48.7)
(6)	Bleeder - screw	(13)	Pad clip
(7)	Cap - bleeder	(14)	Disc rotor (ventilated type)

*: The component cannot be reused when the emergency release of parking brake was performed or when the actuator has a malfunction.

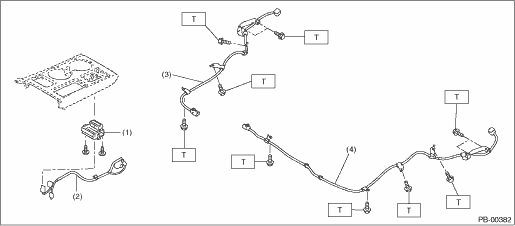

2. ELECTRONIC PARKING BRAKE HARNESS

(1)	Switch ASSY - electronic parking brake	(3)	Electronic parking brake harness RH	Tightening torque: N·m (kgf-m, ft-lb)
(2)	Console box harness	(4)	Electronic parking brake harness LH	T:	18 (1.8, 13.3)
