Subaru Legacy BN/BS (2015-2019) Service Manual: Component

Subaru Legacy BN/BS (2015-2019) Service Manual / Seat belt system / General description / Component

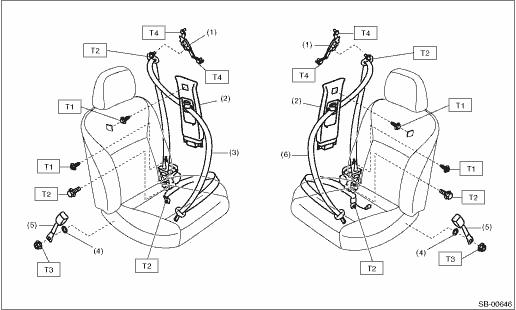

1. FRONT SEAT BELT

(1)	Adjuster ASSY - seat belt	(4)	Wave washer	Tightening torque: N·m (kgf-m, ft-lb)
(2)	Trim panel - center pillar UPR	(5)	Seat belt inner - front	T1:	7.5 (0.8, 5.5)
(3)	Seat belt outer - front	(6)	Seat belt outer - front (only on passenger’s side with belt tension sensor)	T2:	30 (3.1, 22.1)
				T3:	38 (3.9, 28.0)
				T4:	53 (5.4, 39.1)

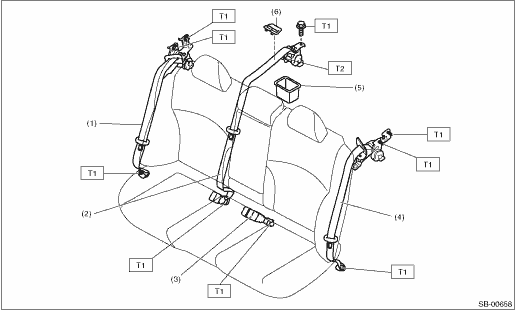

2. REAR SEAT BELT (SEDAN MODEL)

(1)	Seat belt outer - rear RH	(4)	Seat belt outer - rear LH	Tightening torque: N·m (kgf-m, ft-lb)
(2)	Seat belt - rear shoulder CTR	(5)	Cover - ELR	T1:	30 (3.1, 22.1)
(3)	Seat belt - CTR LH	(6)	Cover - belt rear	T2:	53 (5.4, 39.1)

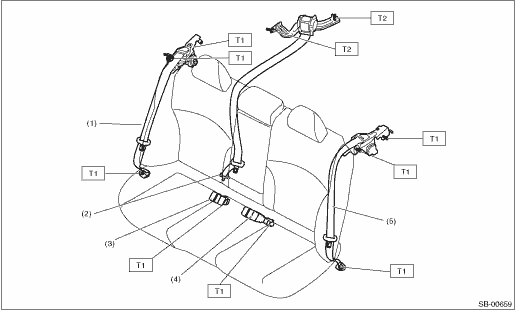

3. REAR SEAT BELT (OUTBACK MODEL)

(1)	Seat belt outer - rear RH	(4)	Seat belt - CTR LH	Tightening torque: N·m (kgf-m, ft-lb)
(2)	Seat belt - rear shoulder CTR	(5)	Seat belt outer - rear LH	T1:	30 (3.1, 22.1)
(3)	Seat belt - CTR RH			T2:	53 (5.4, 39.1)

Caution

• Before starting the work, turn the ignition switch to OFF, disconnect the battery ground cable and wait for 60 seconds or more.• The airbag system (including pretensioner) is fitted with ...
