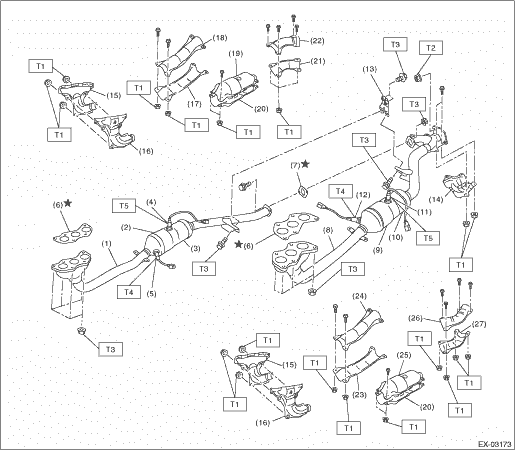

1. FRONT EXHAUST PIPE

(1)

Front exhaust pipe (RH)

(13)

Bracket

(25)

Catalytic converter upper cover (LH)

(2)

Front catalytic converter (RH)

(14)

Protector

(26)

Front exhaust pipe upper cover (LH) (rear)

(3)

Rear catalytic converter (RH)

(15)

Front exhaust pipe cover (RH)

(27)

Front exhaust pipe lower cover (LH) (rear)

(4)

Rear oxygen sensor (RH)

(16)

Front exhaust pipe cover (LH)

(5)

Front oxygen (A/F) sensor (RH)

(17)

Front exhaust pipe lower cover (RH) (front)

Tightening torque: N·m (kgf-m, ft-lb)

(6)

Gasket

(18)

Front exhaust pipe upper cover (RH) (front)

T1:

13 (1.3, 9.6)

(7)

Gasket

(19)

Catalytic converter upper cover (RH)

T2:

18 (1.8, 13.3)

(8)

Front exhaust pipe (LH)

(20)

Catalytic converter lower cover

T3:

30 (3.1, 22.1)

(9)

Front catalytic converter (LH)

(21)

Front exhaust pipe lower cover (RH) (rear)

T4:

Front Oxygen (A/F) Sensor > INSTALLATION

(10)

Rear catalytic converter (LH)

(22)

Front exhaust pipe upper cover (RH) (rear)

T5:

Rear Oxygen Sensor > INSTALLATION

(11)

Rear oxygen sensor (LH)

(23)

Front exhaust pipe lower cover (LH) (front)

(12)

Front oxygen (A/F) sensor (LH)

(24)

Front exhaust pipe upper cover (LH) (front)

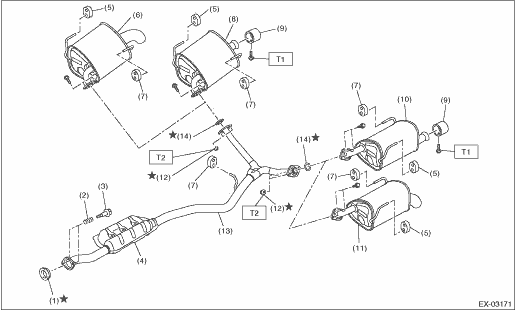

2. REAR EXHAUST PIPE AND MUFFLER

(1)

Gasket

(7)

Cushion rubber (without protrusion)

(13)

Rear exhaust pipe

(2)

Spring

(8)

Muffler RH (sedan model)

(14)

Gasket

(3)

Bolt

(9)

Muffler cutter

(4)

Chamber

(10)

Muffler LH (sedan model)

Tightening torque: N·m (kgf-m, ft-lb)

(5)

Cushion rubber (with protrusion)

(11)

Muffler LH (OUTBACK model)

T1:

7.5 (0.8, 5.5)

(6)

Muffler RH (OUTBACK model)

(12)

Self-locking nut

T2:

48 (4.9, 35.4)

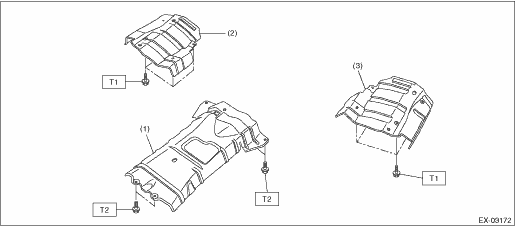

3. HEAT SHIELD COVER

(1)

Center exhaust cover

(3)

Rear exhaust cover LH

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Rear exhaust cover RH

T1:

10 (1.0, 7.4)

T2:

18 (1.8, 13.3)
