Subaru Legacy BN/BS (2015-2019) Service Manual: Component

Subaru Legacy BN/BS (2015-2019) Service Manual / Sunroof t-top convertible top (sunroof) / General description / Component

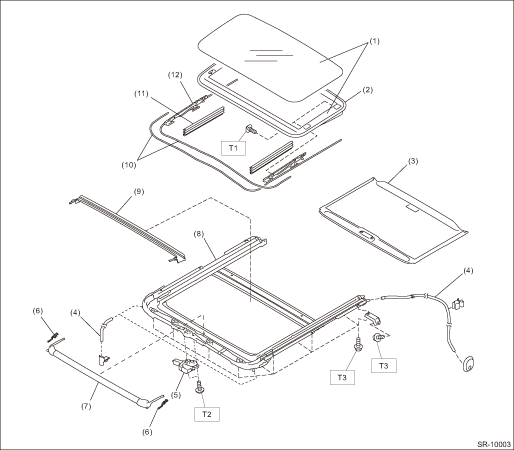

(1)	Lid ASSY - sunroof	(7)	Deflector ASSY - sunroof	Tightening torque: N·m (kgf-m, ft-lb)
(2)	Weather strip	(8)	Rail ASSY - sunroof	T1:	4.5 (0.5, 3.3)
(3)	Sunshade ASSY	(9)	Drain ASSY - sunroof	T2:	5.4 (0.6, 4.0)
(4)	Drain tube - sunroof	(10)	Cable ASSY	T3:	6 (0.6, 4.4)
(5)	Motor ASSY - sunroof	(11)	Lid cover
(6)	Hook	(12)	Link - drain sunroof

Caution

Before disconnecting connectors of sensors or units, be sure to disconnect the ground cable from battery. When replacing the electrical parts provided with memory functions that store contents specifi ...
