Subaru Legacy BN/BS (2015-2019) Service Manual: Control module i o signal electrical specification

Subaru Legacy BN/BS (2015-2019) Service Manual / Combination meter (diagnostics) / Control module i o signal electrical specification

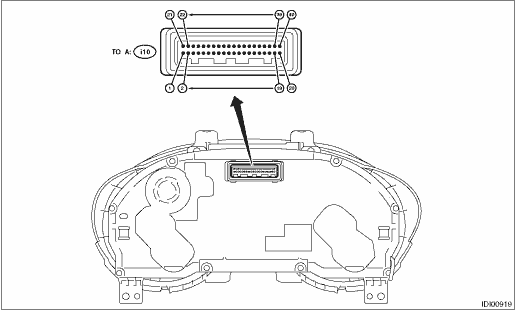

Terminal No.

Contents

Measuring condition

Standard

1 ←> Chassis ground

Battery power supply

Always

8 — 16 V

2 ←> Chassis ground

Ignition power supply (main)

Ignition switch ON

8 — 16 V

3

4

5

6

CAN H (CAN communication line)

7

CAN L (CAN communication line)

8

9

10

11

AUDIO (UART communication line)

12

WARNING BOX (UART communication line)

13

Auto headlight beam leveler

14

Washer fluid level sensor

15

16

17

Charge warning light

18

Oil pressure warning light

19

Immobilizer/security indicator light

20 ←> Chassis ground

GND

Always

Less than 1 -

21

RH turn indicator

22

LH turn indicator

23 ←> 24

Ambient sensor (+)

Always

1 — 35 -

24

Ambient sensor (−)

25 ←> 26

Fuel level sensor (+)

Always

10 — 600 -

26

Fuel level sensor (−)

27

28

29

Illumination control switch (GND)

30

Illumination control switch (VR)

31

Illumination control switch (+)

32

Bright switch signal input

33

Bright switch signal output

34

Illumi. (−) PWM

35

36

37 ←> Chassis ground

SI-X switch

Switch ON

Continuity exists

38 ←> Chassis ground

TFT switch

Switch ON

Continuity exists

39

40

GND

Always

Less than 1 -

Clear memory mode operation
