Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

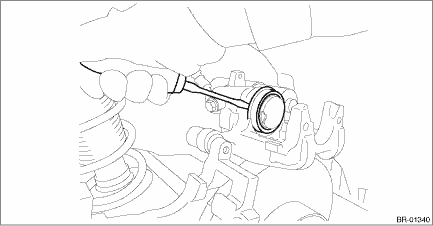

CAUTION: • The piston cannot be removed from the caliper body assembly. • Do not remove the parking brake actuator assembly except when there are system malfunctions (such as emergency release of parking brake or abnormal actuator) or when the caliper is replaced. When the parking brake actuator assembly is reused, always replace the O-ring with a new part contained in the caliper body assembly. 1. Remove mud and foreign matter from the caliper body assembly. 2. Remove the piston boot.

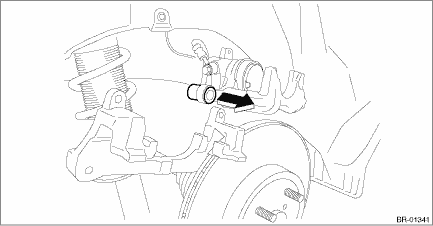

3. Remove the bushing from the support - rear disc brake.
|
Inspection
1. Check the piston sliding part of caliper body and the piston - disc brake for uneven wear, damage or rust.2. Check the rubber parts for damage or deterioration.3. If faulty is found in the inspecti ...
