Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Converter case cover / Disassembly

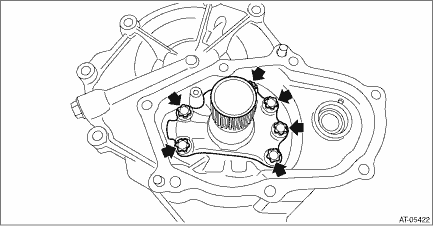

1. Using ST, remove the center support COMPL.

ST 18270KA010

SOCKET (E16)

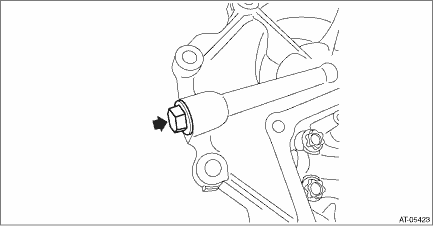

2. Remove the plug and O-ring.

Inspection

• Check for leakage of CVTF from the connection between converter case and converter case cover.• Check there is no damage or cracks on the converter case cover. ...

Assembly

1. Install the plugs.NOTE:• Use new O-rings.• Apply CVTF to the O-rings.Tightening torque:25 N·m (2.5 kgf-m, 18.4 ft-lb)2. Using ST, install the center support COMPL.ST 18270KA01 ...
