Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Intermediate case / Disassembly

1. Remove the parking support.

2. Remove the CVTF filler plug.

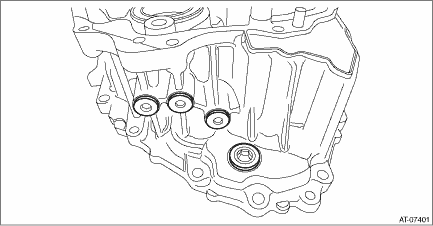

3. Remove all plugs from intermediate case.

4. Remove the reverse brake assembly. Reverse Brake Assembly > DISASSEMBLY
