Subaru Legacy BN/BS (2015-2019) Service Manual: Dtc c1955 lh actuator

Subaru Legacy BN/BS (2015-2019) Service Manual / Vehicle dynamics control (vdc) (diagnostics) / Diagnostic procedure with diagnostic trouble code (dtc) / Dtc c1955 lh actuator

DTC DETECTING CONDITION:

A fault is detected if mechanical sticking or abnormal operation of the rear brake caliper LH is detected.

TROUBLE SYMPTOM:

Parking brake system does not operate.

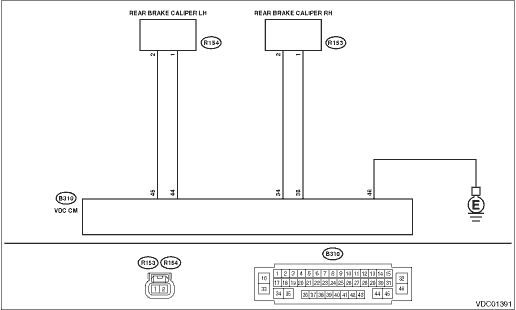

WIRING DIAGRAM:

NOTE:

For the coupling connector, refer to “WIRING SYSTEM”.

Parking brake / brake fluid level warning light system Parking Brake / Brake Fluid Level Warning Light System

STEPCHECKYESNO

1.CHECK HARNESS (CHECK FOR OPEN CIRCUIT).

1) Turn the ignition switch to OFF.

2) Disconnect the connectors from the VDCCM&H/U and rear brake caliper LH.

3) Measure the resistance between VDCCM&H/U and rear brake caliper LH connector.

Connector & terminal

(B310) No. 44 — (R154) No. 1:

(B310) No. 45 — (R154) No. 2:

Is the resistance less than 1 --

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC C1955 LH ACTUATOR

Repair harness and connector between VDCCM&H/U and rear brake caliper LH connector.

2.CHECK HARNESS (CHECK FOR GROUND SHORT CIRCUIT).

Measure the resistance between the rear brake caliper LH connector and chassis ground.

Connector & terminal

(R154) No. 2 — Chassis ground:

(R154) No. 1 — Chassis ground:

Is the resistance 1 M- or more-

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC C1955 LH ACTUATOR

Repair ground short of harness between VDCCM&H/U and rear brake caliper LH connector.

3.CHECK HARNESS (CHECK FOR SHORT CIRCUIT TO POWER SUPPLY).

1) Turn the ignition switch to ON.

2) Measure the voltage between the rear brake caliper LH connector and chassis ground.

Connector & terminal

(R154) No. 2 (+) — Chassis ground (−):

(R154) No. 1 (+) — Chassis ground (−):

Is the voltage less than 1 V-

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC C1955 LH ACTUATOR

Repair short to power supply of harness between VDCCM&H/U and rear brake caliper LH connector.

4.CHECK POOR CONTACT OF CONNECTORS.

Is there poor contact of power supply circuit, ground circuit and VDCCM&H/U connector-

Repair the connector.

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC C1955 LH ACTUATOR

5.CHECK REPEATABILITY.

1) Connect all connectors.

2) Perform the Clear Memory Mode. Clear Memory Mode

3) Perform the Inspection Mode. Inspection Mode

4) Read the DTC. Read Diagnostic Trouble Code (DTC)

Is the same DTC displayed-

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC C1955 LH ACTUATOR

Temporary poor contact occurs.

6.CHECK REAR BRAKE CALIPER.

1) Turn the ignition switch to OFF.

2) Disconnect the connectors from rear brake caliper LH.

3) Measure the resistance between rear brake caliper LH terminals.

Terminals

No. 1 — No. 2:

Is the resistance less than 100 --

Replace the VDCCM&H/U. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U)

Replace the rear brake caliper LH. Rear Disc Brake Assembly
