Subaru Legacy BN/BS (2015-2019) Service Manual: Dtc p0366 camshaft position sensor "b" circuit range/performance bank 1

Subaru Legacy BN/BS (2015-2019) Service Manual / Engine (diagnostics)(h6do) / Diagnostic procedure with diagnostic trouble code (dtc) / Dtc p0366 camshaft position sensor "b" circuit range/performance bank 1

NOTE:

For the diagnostic procedure, refer to DTC P0365. Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0365 CAMSHAFT POSITION SENSOR "B" CIRCUIT BANK 1

1. OUTLINE OF DIAGNOSIS

Detect the malfunction of camshaft position sensor property.

Judge as NG when the number of camshaft signals remains abnormal.

2. COMPONENT DESCRIPTION

(A)

Camshaft signal (RH)

(B)

Camshaft signal (LH)

(C)

Crankshaft signal

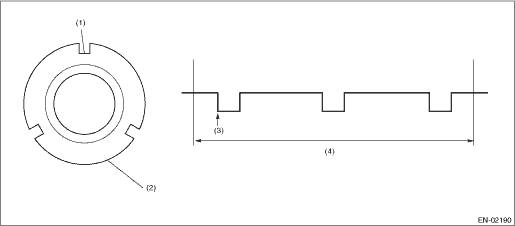

(1)	Slot	(3)	Detecting point	(4)	Camshaft one revolution (crankshaft two revolutions)
(2)	Camshaft plate

3. EXECUTION CONDITION

Secondary Parameters	Execution condition
Battery voltage	≥ 10.9 V
Elapsed time after starting the engine	≥ 200 ms

4. GENERAL DRIVING CYCLE

Always perform the diagnosis continuously.

5. DIAGNOSTIC METHOD

Judge as NG when the status where the number of camshaft position sensor signal in two crankshaft revolutions is other than 3 time(s).

Judgment Value

Malfunction Criteria	Threshold Value
Amount of camshaft sensor signal during 2 revs of crankshaft	≠ 3 time(s)

Time Needed for Diagnosis: 2 engine revs. - 4 time(s)

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
