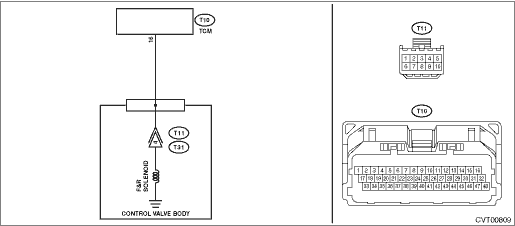

DTC DETECTING CONDITION: Immediately at fault recognition TROUBLE SYMPTOM: • Engine speed increases abruptly, and can not accelerate. • Excessive slippage is felt. 1. ENGINE TYPE FB WIRING DIAGRAM: CVT control system CVT Control System > WIRING DIAGRAM
| STEP | CHECK | YES | NO | 1.CHECK DTC. Read the DTC using Subaru Select Monitor. | Besides DTC P0965, is any of the DTC P0717, P0966, P0967 or P2747 displayed- | Perform the diagnosis according to DTCs other than P0965. | Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0965 PRESSURE CONTROL SOLENOID "B" CONTROL CIRCUIT RANGE/PERFORMANCE | 2.CHECK F&R SOLENOID (ACTIVE TEST). 1) Turn the ignition switch to ON. 2) Using the Subaru Select Monitor, perform forced operation of the F&R solenoid. Active Test | Does the indication change as 300 > 500 > 700 mA during forced operation, and does «F&R Linear Solenoid Actual Current» synchronize with «F&R Linear Solenoid Set Current»- | Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0965 PRESSURE CONTROL SOLENOID "B" CONTROL CIRCUIT RANGE/PERFORMANCE | Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0965 PRESSURE CONTROL SOLENOID "B" CONTROL CIRCUIT RANGE/PERFORMANCE | 3.CHECK FOR POOR CONTACT. Check for poor contact of harness and connector between TCM and F&R solenoid. | | Repair the poor contact of harness and connector. | Recheck the poor contact of harness and connector. Replace the TCM if no fault is found. Transmission Control Module (TCM) | 4.CHECK F&R SOLENOID. 1) Turn the ignition switch to OFF. 2) Disconnect the TCM connector. 3) Measure the resistance between TCM connector and transmission body. Connector & terminal (T10) No. 16 — Transmission body: | Is the resistance approx. 4 — 6 -- (when cold) | Replace the control valve body. Control Valve Body | Repair or replace the harness. |

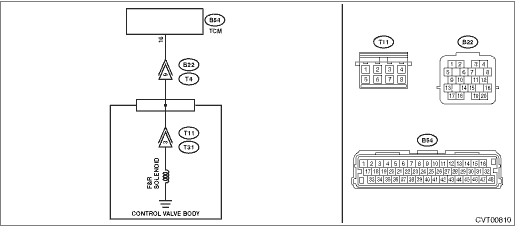

2. ENGINE TYPE EZ WIRING DIAGRAM: CVT control system CVT Control System > WIRING DIAGRAM
| STEP | CHECK | YES | NO | 1.CHECK DTC. Read the DTC using Subaru Select Monitor. | Besides DTC P0965, is any of the DTCs P0720, P0966, P0967, P1706 and P2751 displayed- | Perform the diagnosis according to DTCs other than P0965. | Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0965 PRESSURE CONTROL SOLENOID "B" CONTROL CIRCUIT RANGE/PERFORMANCE | 2.CHECK F&R SOLENOID (ACTIVE TEST). 1) Turn the ignition switch to ON. 2) Using the Subaru Select Monitor, perform forced operation of the F&R solenoid. Active Test | Does the indication change as 300 > 500 > 700 mA during forced operation, and does «F&R Linear Solenoid Actual Current» synchronize with «F&R Linear Solenoid Set Current»- | Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0965 PRESSURE CONTROL SOLENOID "B" CONTROL CIRCUIT RANGE/PERFORMANCE | Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0965 PRESSURE CONTROL SOLENOID "B" CONTROL CIRCUIT RANGE/PERFORMANCE | 3.CHECK FOR POOR CONTACT. Check for poor contact of harness and connector between TCM and F&R solenoid. | | Repair the poor contact of harness and connector. | Recheck the poor contact of harness and connector. Replace the TCM if no fault is found. Transmission Control Module (TCM) | 4.CHECK F&R SOLENOID. 1) Turn the ignition switch to OFF. 2) Disconnect the transmission connector. 3) Measure the resistance between transmission connector and transmission body. Connector & terminal (T4) No. 9 — Transmission body: | Is the resistance approx. 4 — 6 -- (when cold) | Replace the control valve body. Control Valve Body | Repair or replace the harness. |
3. OUTLINE OF DIAGNOSIS Diagnosis 1 • Detect the malfunction of transmission forward/reverse clutch pressure solenoid drive circuit characteristics. • Judge as NG when the deviation between set current and actual current of the transmission forward/reverse clutch pressure solenoid drive circuit becomes equal to or larger than the predetermined value. Diagnosis 2 • Detect the malfunction of transmission forward/reverse clutch pressure solenoid drive circuit characteristics. • Judge as NG when the transmission forward/reverse clutch pressure solenoid drive current is within the predetermined value. 4. EXECUTION CONDITION Secondary Parameters | Execution condition | Diagnosis 1 | | 12 V battery system voltage | ≥ 9 V | Diagnosis 2 | | 12 V battery system voltage | ≥ 9 V |
5. DIAGNOSTIC METHOD If the duration of time while the following conditions are met is longer than the time indicated, judge as NG. Judgment ValueMalfunction Criteria | Threshold Value | Diagnosis 1 | | |Target forward & reverse clutch pressure control solenoid current − Measured forward & reverse clutch pressure control solenoid circuit| | > 0.2 A | Diagnosis 2 | | Measured forward & reverse clutch pressure control solenoid current | > 1.08 A | | | and | | | ≤ 1.6 A | Time Needed for Diagnosis: 5 seconds Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs. |
