Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical component location location

Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (diagnostics) / Electrical component location location

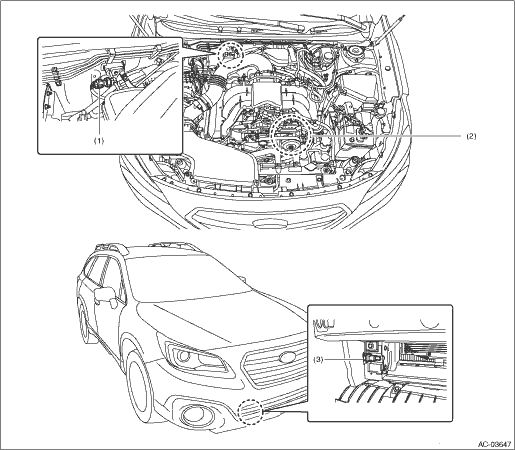

1. ENGINE COMPARTMENT

(1)

Pressure sensor

(2)

A/C compressor

(Refrigerant flow sensor, variable flow change solenoid)

(3)

Ambient sensor

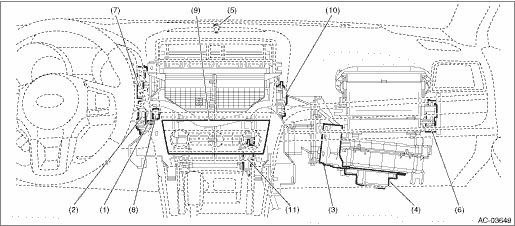

2. PASSENGER COMPARTMENT

(1)	Evaporator sensor	(5)	Sunload sensor	(9)	A/C control panel
(2)	Air mix door actuator1 or air mix door actuator LH2	(6)	Intake door actuator	(10)	Air mix door actuator RH*2
(3)	A/C CM	(7)	Mode door actuator	(11)	Rear vent actuator*3
(4)	Blower motor	(8)	In-vehicle sensor

*1: Manual A/C

*2: Auto A/C

*3: With rear seat A/C
