Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical component location location

Subaru Legacy BN/BS (2015-2019) Service Manual / Telematics system (diagnostics) / Electrical component location location

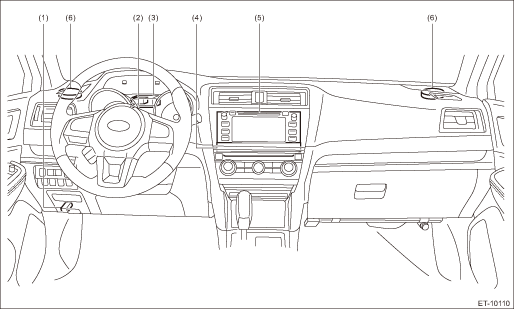

(1)	Data link connector	(3)	Telematics sub antenna	(5)	Audio or navigation
(2)	GPS antenna	(4)	Data communication module (DCM)	(6)	Instrument panel speaker (standard and H/K specifications)

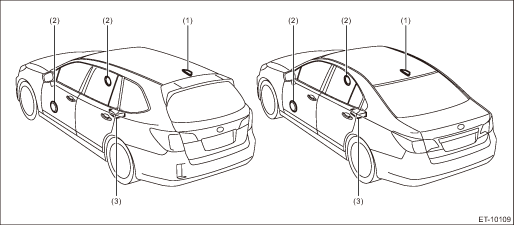

(1)

Telematics antenna

(2)

Door speaker (standard specification)

(3)

Airbag CM

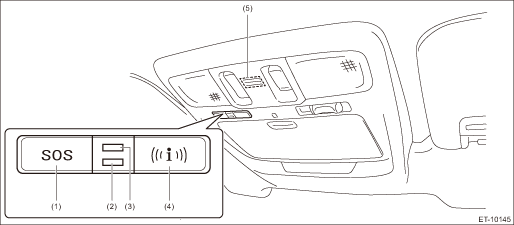

(1)	SOS button	(3)	GREEN LED	(5)	Microphone
(2)	RED LED	(4)	i-button

NOTE:

For the LED operation condition, refer to "LED operation condition" in "Check List for Interview". Check List for Interview > CHECK

Diagnostics with phenomenon list

No.SymptomsReference1The system does not notify the Telematics Service Provider Center automatically after collision. Diagnostics with Phenomenon > INSPECTION2The system does not notify the center eve ...

Inspection mode procedure

It is possible to diagnose the DTC by performing the indicated inspection mode.After correcting the DTC, perform a necessary inspection mode and make sure that the function is resumed correctly and th ...
