Subaru Legacy BN/BS (2015-2019) Owners Manual: Front side marker light

Subaru Legacy BN/BS (2015-2019) Owners Manual / Maintenance and service / Replacing bulbs / Front side marker light

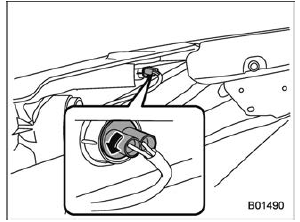

Turn the socket counterclockwise and pull it out.
Pull out the bulb from the socket and replace the bulb with a new one.

Front turn signal light

Turn the socket counterclockwise and pull it out. Pull out the bulb from the socket and replace the bulb with a new one. ...

Front fog light (if equipped)

NOTE It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary. Remove the clips. Turn over the mud guard. &nbs ...
