Fuse panel located in the engine compartment

A) Main fuse

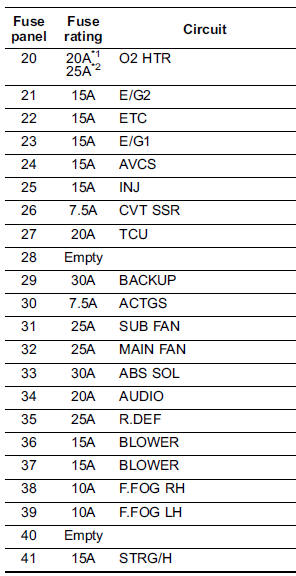

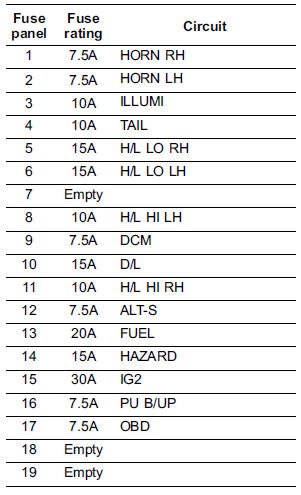

Fuse panel located in the engine compartment

Fuse panel located in the engine compartment

Fuse panel located in the engine compartment

*1: 2.5 L models
*2: 3.6 L models
