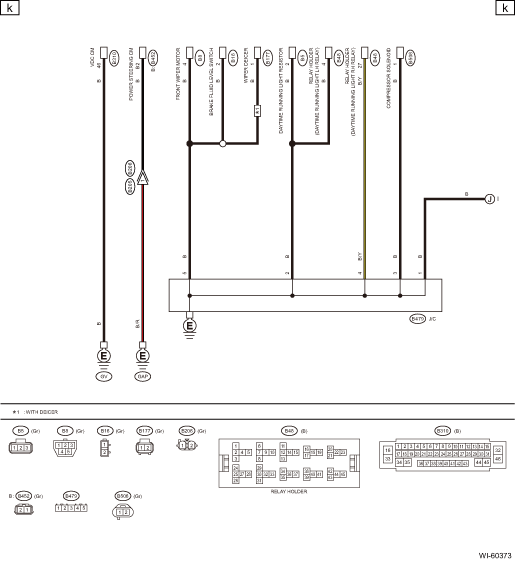

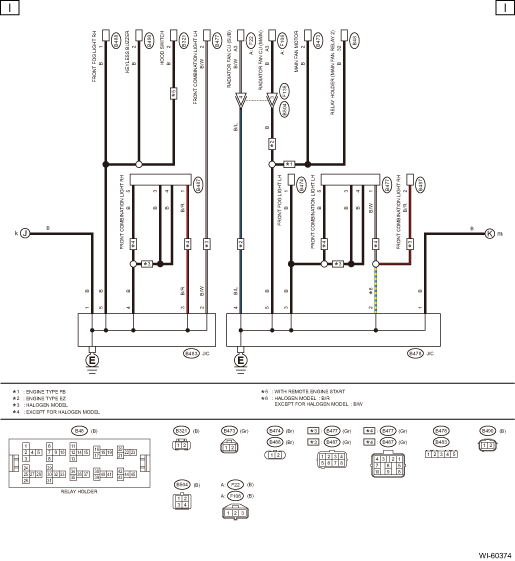

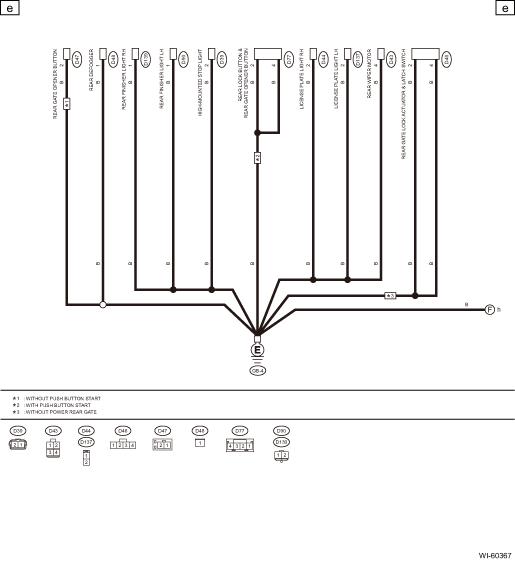

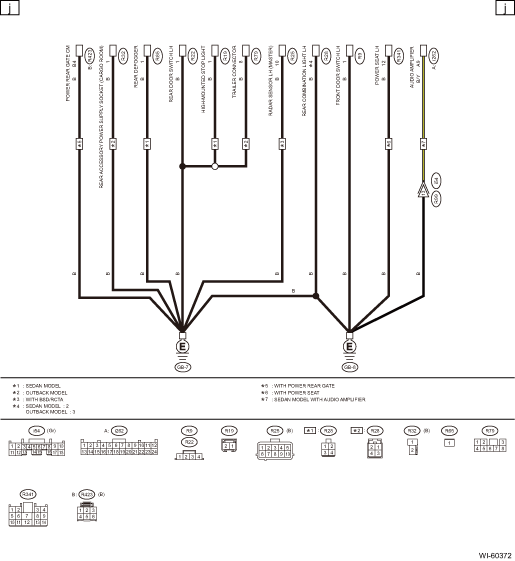

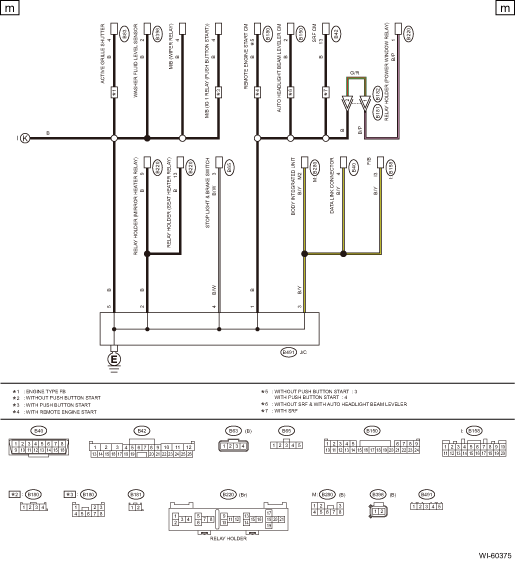

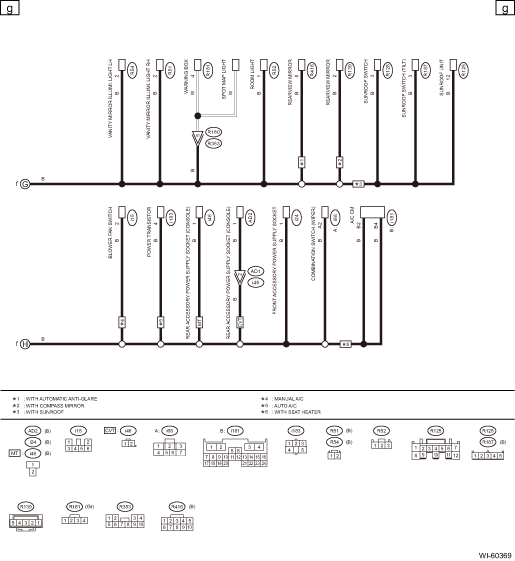

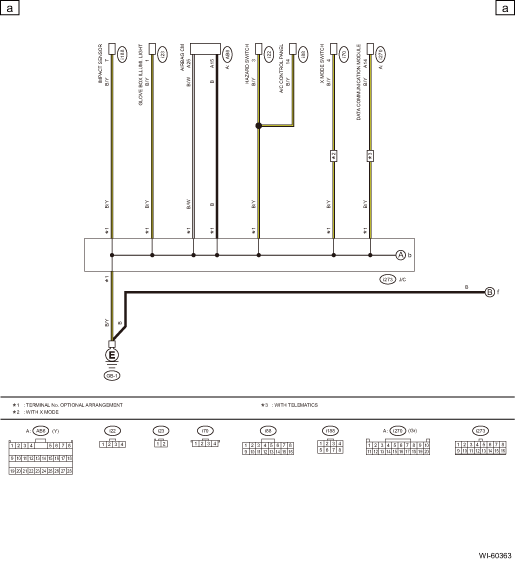

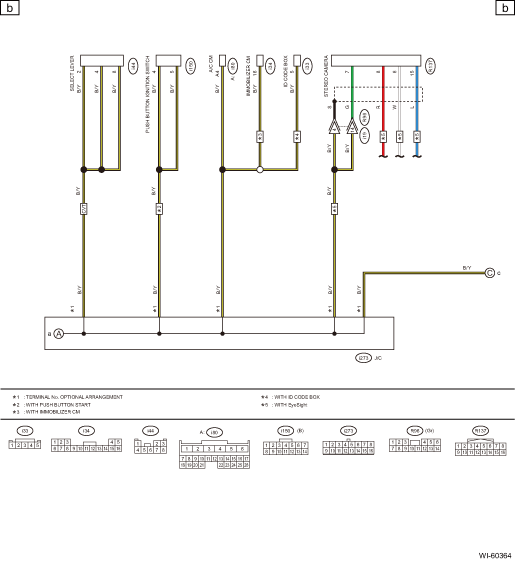

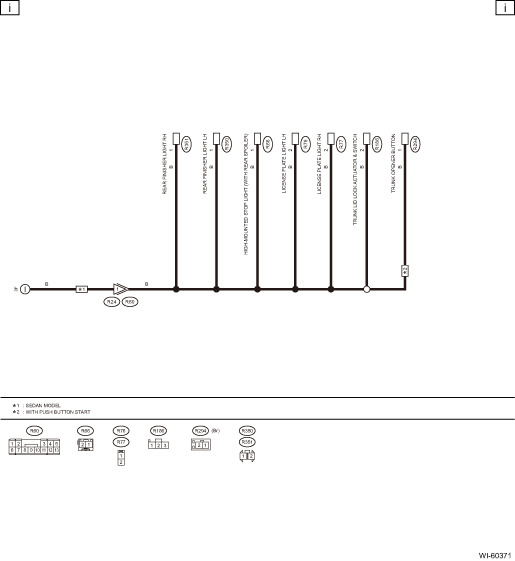

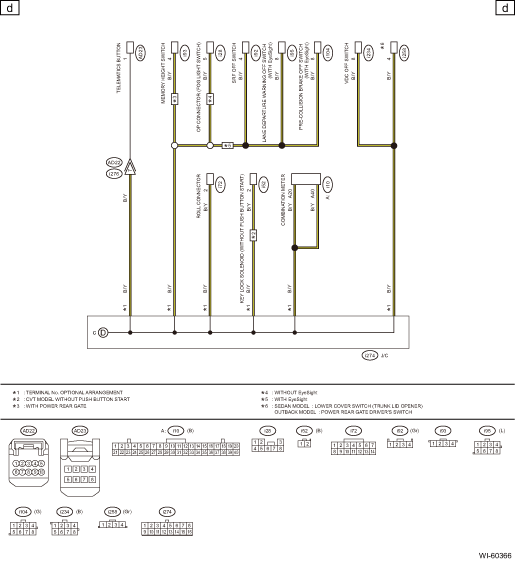

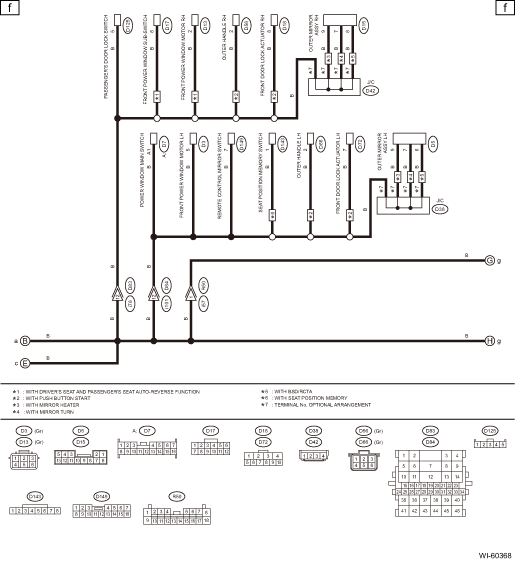

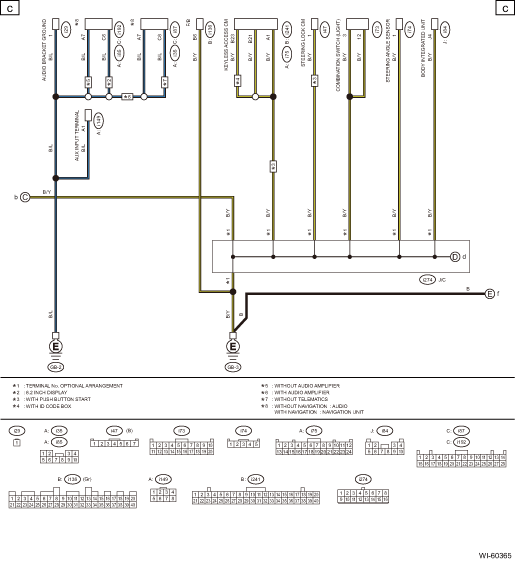

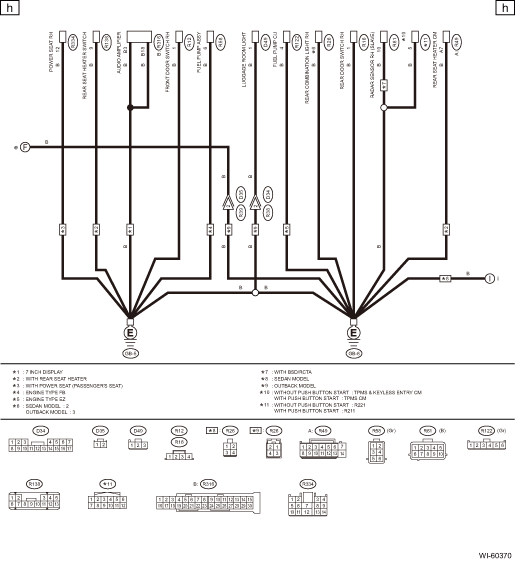

Subaru Legacy BN/BS (2015-2019) Service Manual: Ground circuit wiring diagram

Fuse and relay location

1. ENGINE COMPARTMENT SIDE2. PASSENGER ROOM SIDE ...

Harness components location location

1. SEDAN MODEL(1)Front wiring harness(10)Trunk lid cord(18)Inhibitor harness(2)Engine wiring harness(11)Rear door cord LH(19)Parking brake sub wiring harness RH(3)Bulkhead wiring harness(12)Front door ...

Other materials:

Dtc u0028 heater control panel communication error
DTC DETECTING CONDITION:UART communication failureTROUBLE SYMPTOM:• Unable to operate A/C.• DTC “U0028” HEATER CONTROL PANEL COMMUNICATION ERROR was detected.WIRING DIAGRAM:Air conditioning system Air Conditioning System > WIRING DIAGRAMSTEPCHECKYESNO1.CHECK CONNECTOR.Check ...
