• Check each component for scratches, damage or other faults.

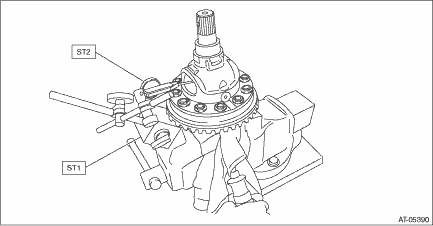

• Inspect the backlash of the pinion gear.

Specification:

0.13 — 0.18 mm (0.0051 — 0.0071 in)

• Measure the hypoid gear backlash, and then adjust it to be within specification. Front Differential Assembly > ADJUSTMENT

Installation

1. Install the front differential assembly to the converter case.NOTE:Be careful not to damage the inside of the case (especially the mating surface of the differential side retainers).2. Temporarily ...

Disassembly

1. DIFFERENTIAL CASE ASSEMBLY1. Remove the taper roller bearing using the ST.ST 498077000REMOVER2. Remove the hypoid driven gear mounting bolt using the ST.ST 18270KA020SOCKET (E20)3. Remove the ...
