1. Check that the fuel pump has no deformation, cracks or other damages.

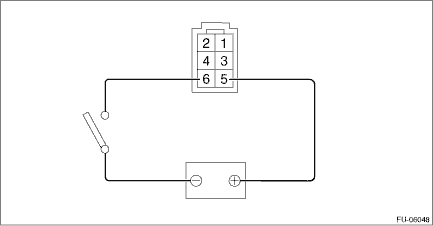

2. Connect the battery positive terminal to terminal No. 5 and the battery ground terminal to terminal No. 6, and inspect the fuel pump operation.

WARNING:

• Wipe off fuel completely.

• Keep the battery as far apart from fuel pump as possible.

• Do not run the fuel pump for a long time under non-load condition.
