Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Brake / Master cylinder / Installation

1. Replace the seal sub assembly for the master cylinder assembly with a new part.

CAUTION:

Be careful not to install the seal sub assembly in the wrong location.

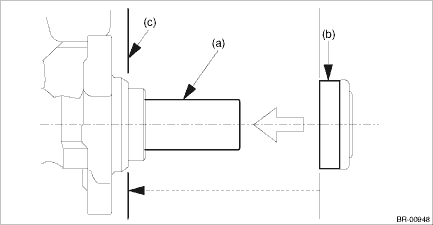

(a)

Primary piston

(b)

Seal sub ASSY

(c)

Install the seal sub ASSY to this surface.

2. Install the master cylinder assembly.

Tightening torque:

13 N·m (1.3 kgf-m, 9.6 ft-lb)

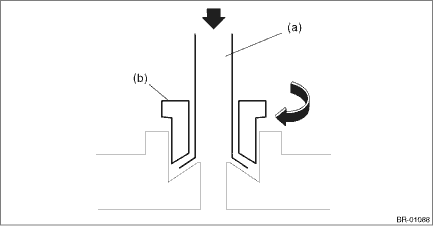

3. Turn and tighten the flare nut (b) by hand while pressing the brake pipe (a) toward the master cylinder assembly side.

CAUTION:

Be careful not to make scratches or other damage to the inside surface of the brake pipe flare.

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

4. Bleed air from the brake system and clutch system (MT model). Air Bleeding > PROCEDURE

5. Connect the ground terminal to battery sensor. NOTE

Assembly

CAUTION:When replacing the reservoir tank, adhere the label to the position shown in the figure. (C0 and C5 models)Fluid caution label:C0 and C5 modelsPart No. 25080GA010(a)Fluid caution label(b)Brake ...

Disassembly

1. Remove the reservoir tank.CAUTION:Be careful not to tighten a vise excessively.(1) Place the master cylinder assembly between aluminum plates and fix it on a vise.(2) Drive out the pin using a punc ...
