Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

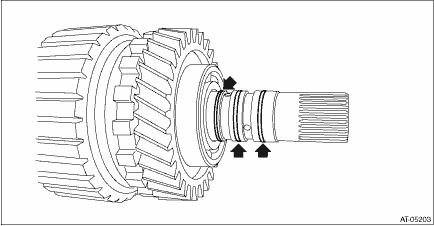

1. Apply CVTF to the seal ring and attach it to the seal ring groove of transfer clutch assembly.

NOTE:

Use new seal rings.

When installing the seal rings, do not expand the seal rings too much.

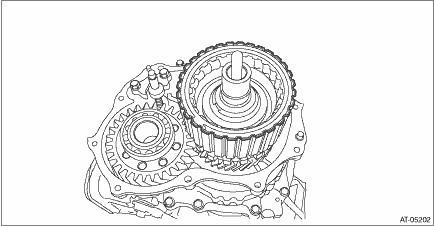

2. Install the transfer clutch assembly.

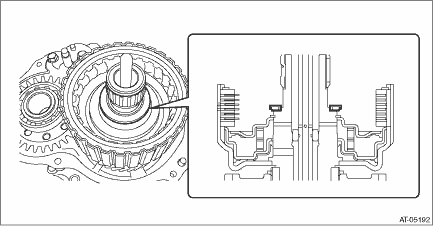

3. Select the thrust needle bearing. Rear Drive Shaft > ADJUSTMENT

4. Install the selected thrust needle bearing and needle bearing to transfer clutch assembly.

NOTE:

Install the thrust needle bearing in the correct direction.

5. Install the rear drive shaft. Rear Drive Shaft

6. Install the extension case. Extension Case > INSTALLATION

7. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION

Adjustment
NOTE:Refer to the Rear Drive Shaft. Rear Drive Shaft > ADJUSTMENT ...

Inspection
• Inspect the drive plate facing for wear and damage.• Driven plate for discoloration (burned color)• Make sure the snap ring is not worn and the return spring has no permanent disto ...
