CAUTION:

If lubricant is spilt over the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.

1. Before installing front oxygen (A/F) sensor, apply anti-seize compound only to the threaded portion of front oxygen (A/F) sensor to make the next removal easier.

CAUTION:

Never apply anti-seize compound to the protector of front oxygen (A/F) sensor.

Anti-seize compound:

NEVER-SEEZ NSN, JET LUBE SS-30 or equivalent

2. Install the front oxygen (A/F) sensor.

Tightening torque:

21 N·m (2.1 kgf-m, 15.5 ft-lb)

3. Connect the connector (A) of front oxygen (A/F) sensor.

4. Install the clip (B) securing the front oxygen (A/F) sensor harness. (LH side only)

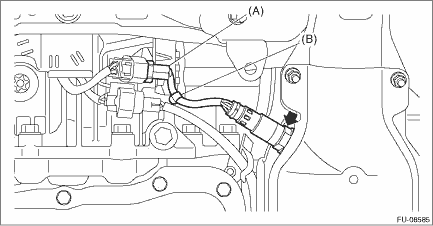

• RH side

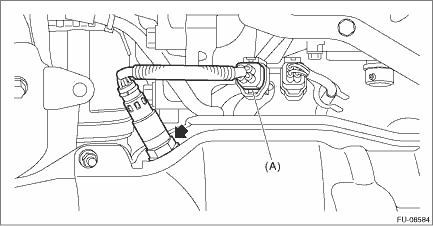

• LH side

5. Lower the vehicle.

6. Connect the ground terminal to battery sensor. NOTE

Inspection

1. Check that the front oxygen (A/F) sensor has no deformation, cracks or other damages.2. Measure the resistance between front oxygen (A/F) sensor terminals.Terminal No.Standard3 and 42.0+0.42 &minus ...
