Install in the reverse order of removal.

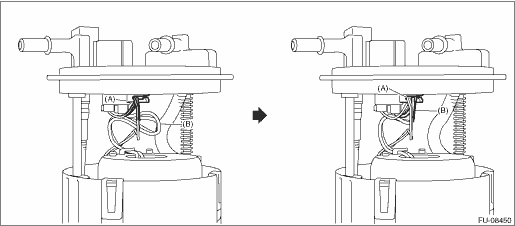

CAUTION:

Be sure to install the fuel level sensor harness to the clip first, then install the fuel pump harness. Otherwise, malfunction may occur.

(A)

Fuel level sensor harness

(B)

Fuel pump harness

Inspection

1. Check that the fuel level sensor has no damage.2. Measure the fuel level sensor float position.NOTE:When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pum ...

Fuel pump

...
