Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

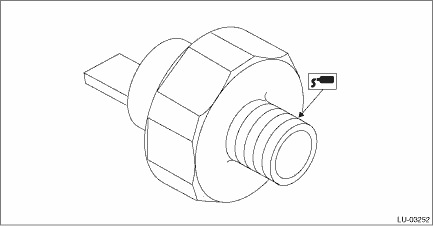

1. Apply liquid gasket to the oil pressure switch threads. Liquid gasket: THREE BOND 1324 (Part No. 004403042) or equivalent
2. Install the oil pressure switch to the oil pan upper. Tightening torque: 25 N·m (2.5 kgf-m, 18.4 ft-lb) 3. Connect the terminal to the oil pressure switch. 4. Install the under cover. Front Under Cover > INSTALLATION 5. Lower the vehicle. 6. Connect the ground terminal to battery sensor. NOTE 7. Refill the engine oil. Engine Oil > REPLACEMENT |
Inspection
1. Check that the oil pressure switch does not have deformation, cracks or damage.2. Check the oil pressure switch installation portion for oil leakage and oil seepage. ...
