Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Lubrication(h6do) / Oil pump / Installation

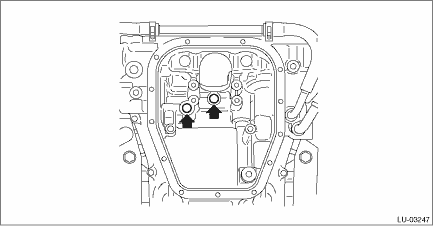

1. Apply engine oil to the O-ring and attach it to the oil pan upper.

NOTE:

Use new O-rings.

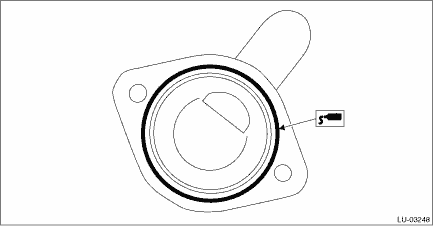

2. Apply liquid gasket to the mating surfaces of strainer.

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

Liquid gasket applying diameter:

2±1 mm (0.079±0.039 in)

NOTE:

• Install within 5 min. after applying liquid gasket.

• After installing the strainer, remove any liquid gasket that is squeezed out.

3. Install the strainer to the oil pump.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

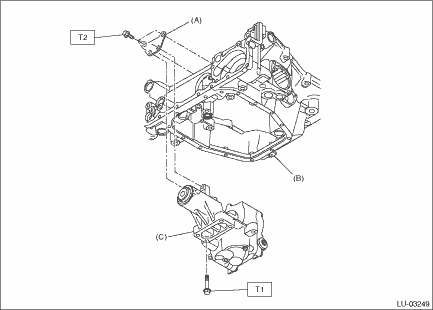

4. Install the stiffener and the oil pump.

Tightening torque:

T1: 13 N·m (1.3 kgf-m, 9.6 ft-lb)

T2: 24 N·m (2.4 kgf-m, 17.7 ft-lb)

(A)

Stiffener

(B)

Oil pan upper

(C)

Oil pump

5. Install the oil pan lower. Oil Pan > INSTALLATION

6. Install the timing chain assembly. Timing Chain Assembly > INSTALLATION

7. Install the chain cover. Chain Cover > INSTALLATION

8. Connect the ground terminal to battery sensor. NOTE

9. Refill the engine oil. Engine Oil > REPLACEMENT

10. Fill the ATF. Engine Coolant > REPLACEMENT

11. Install the collector cover.

Inspection

• Visually check the oil pump for breakage.• Visually check the strainer portion for clogging. ...
