Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

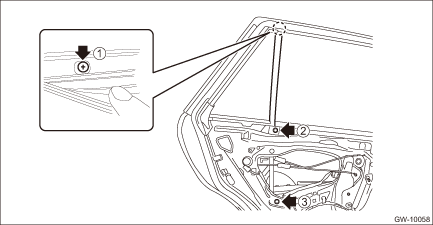

1. Install the running channel - rear door to the panel assembly - rear door. CAUTION: Check that the running channel - rear door is securely fixed to the panel assembly - rear door and to the sash assembly - rear partition. 2. Install the glass assembly - rear door. CAUTION: Avoid impact and damage to the glass assembly - rear door. 3. Install the glass - rear door partition and the sash assembly - rear partition. NOTE: • Tighten the sash assembly - rear partition in the following order. • Install the running channel - rear door before installing the sash assembly - rear partition, and then install to the panel assembly - rear door. Tightening torque: Refer to “COMPONENT” of “General Description”. General Description > COMPONENT
4. Install the sealing cover - rear door. Rear Sealing Cover > INSTALLATION 5. Install the trim panel - rear door. Door Trim > INSTALLATION 6. Connect the ground terminal to battery sensor. NOTE |
