Subaru Legacy BN/BS (2015-2019) Service Manual: Location

Subaru Legacy BN/BS (2015-2019) Service Manual / Mechanical(h6do) / Timing chain assembly / Location

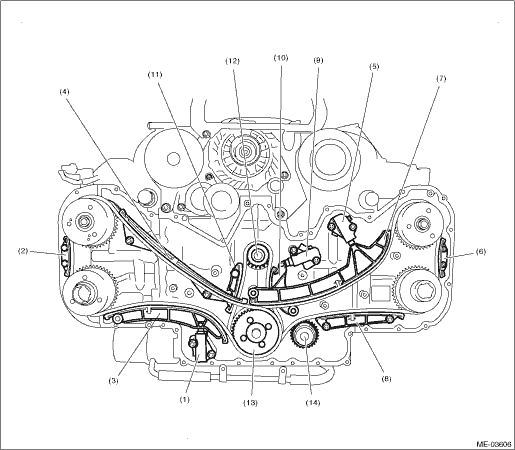

(1)

Chain tensioner (RH)

(6)

Chain guide (between cams, LH)

(11)

Chain guide (main)

(2)

Chain guide (between cams, RH)

(7)

Chain tensioner lever (LH)

(12)

Crank sprocket

(3)

Chain tensioner lever (RH)

(8)

Chain guide (LH)

(13)

Idler sprocket

(4)

Chain guide (RH)

(9)

Chain tensioner (main)

(14)

Water pump sprocket

(5)

Chain tensioner (LH)

(10)

Chain tensioner lever (main)
