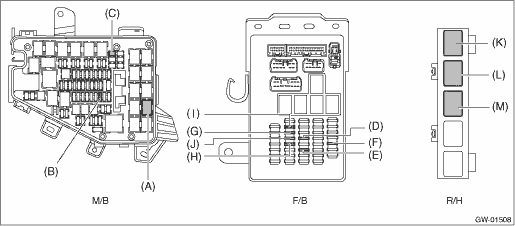

Main fuse box (M/B)	Rear defogger relay	(A)
	Fuse 25 A (rear defogger)	(B)
	Slow blow fuse (power window)	(C)
Fuse & relay box (F/B)	Fuse 7.5 A (remote control mirror)	(D)
	Fuse 15 A (mirror heater, wiper deicer)	(E)
	Fuse 20 A (power window main switch)	(F)
	Fuse 30 A (power window main switch)	(G)
	Fuse 20 A (power window sub switch)	(H)
	Fuse 20 A (power window sub switch)	(I)
	Fuse 20 A (power window sub switch)	(J)
Relay holder (R/H)	Power window relay	(K)
	Wiper deicer relay	(L)
	Mirror heater relay	(M)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit

1. CHECK FUSE1. Remove the fuse and inspect visually.2. If the fuse is blown out, replace the fuse.2. CHECK RELAY1. Check the resistance between relay terminals.Terminal No.Inspection conditionsStanda ...
