Subaru Legacy BN/BS (2015-2019) Service Manual / Sunroof t-top convertible top (sunroof) / Relay and fuse / Location

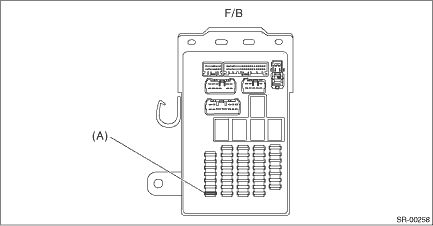

Fuse & relay box (F/B)

Fuse 20A

(A)

NOTE:

For details concerning other fuses and relays, refer to the wiring diagram. Power Supply Circuit

Inspection

1. CHECK FUSE1. Remove the fuse and inspect visually.2. If the fuse is blown out, replace the fuse. ...
